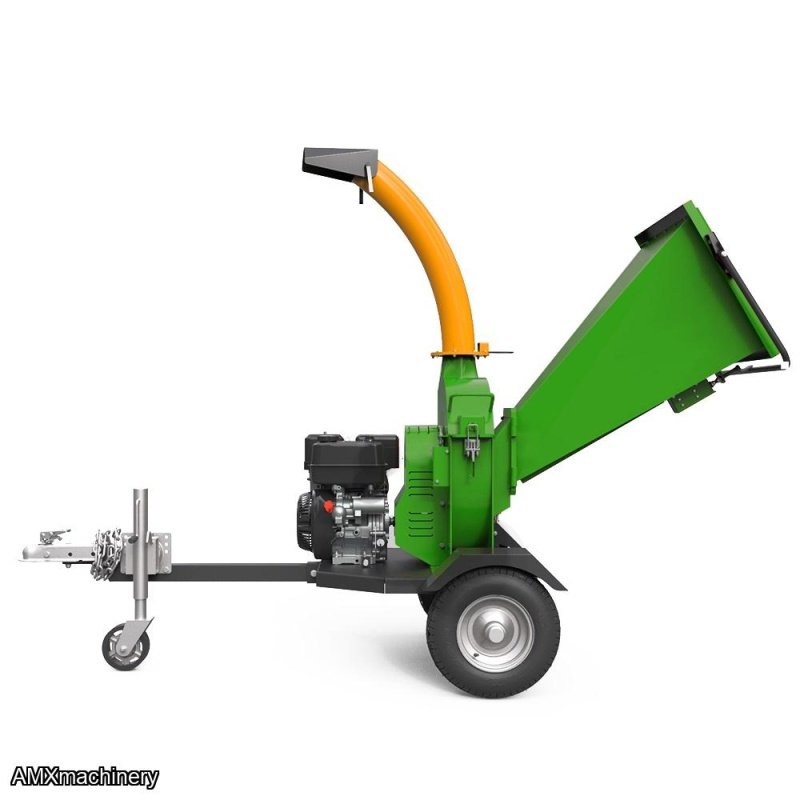

ASTILLADOR A GASOLINA – 13.5 HP – MAX DIAMETRO 4.5”

PARTE: 2EB-MDWC1500 - ASTILLADOR A GASOLINA – 13.5 HP – MAX DIAMETRO 4.5”

NUEVA CON GARANTIA

Electric Start (Battery included), Emergency Stop Lever for Safety,

Powerful 13 1/2 HP B&S Gasoline Engine, 4-stroke, air-cooled,

Efficient Disc Rotor cutting up to 4 1/2 in. in diameter,

360 degrees rotatable Discharge Chute, 2"  Ball Trailer Hitch,

Self-feeding gasoline engine powered that uses a large disc rotor. Compared to most others which use a drum style processor, this machine is more efficient and more productive. The machine can handle material up to 4 1/2" in diameter.

Equipped with a professional grade Briggs & Stratton gasoline engine with 13.5 HP and 21.00 ft./lbs. of torque. Comes standard with an Electric Start (Battery included). The material is fed by the Infeed chute into the 22" diameter rotor. This powerful system is pulling the branches in at up to 50' per/min.

Perfectly balanced and can easily be moved to your worksite either by hand or by connecting it to an ATV or utility vehicle for transport.

Performance:

The Briggs & Stratton gasoline engine has 420CC and 13.5 HP  (21 ft./lb. torque). The drive system uses a centrifugal clutch and a direct belt. The engine's 3,600 RPM powers the rotor-disc at 2,000 RPM.

The chipping mechanism is designed with a Rotor-Disc of 22” in diameter and 7/8" in width and 2 large knives. These knives pull the wood powerfully into the shredder and cut the material reliably against the counter knife. Depending on the type of material you process, how hard, wet, or not, it handles up to 4 1/2” in diameter easily.

The disc-driven cutting system is significantly more powerful and reliable when compared to the drum system of most other motorized wood chippers. It doesn't clog up as often and it provides for easy access to the knives (just open up the rotor housing). The service-friendly design of our MDWC provides for easy maintenance, please follow the manual (enclosed with the machine).

Specs:

• 4 1/2” chipping capacity

• Rotor-Disc: 22" x 3/4"

• Infeed Height: 59", Discharge Height: 72"

• Infeed Chute Opening: 18" x 20"

• 13.5 HP Briggs & Stratton Gasoline Engine

• Centrifugal clutch, Direct belt

• Machine (net) Weight: 535 lb.

• Dimensions: L 100" x W 40" x H 72"

ATTENTION

Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation! BEFORE USING THE MACHINE please carefully read the English user manual.
