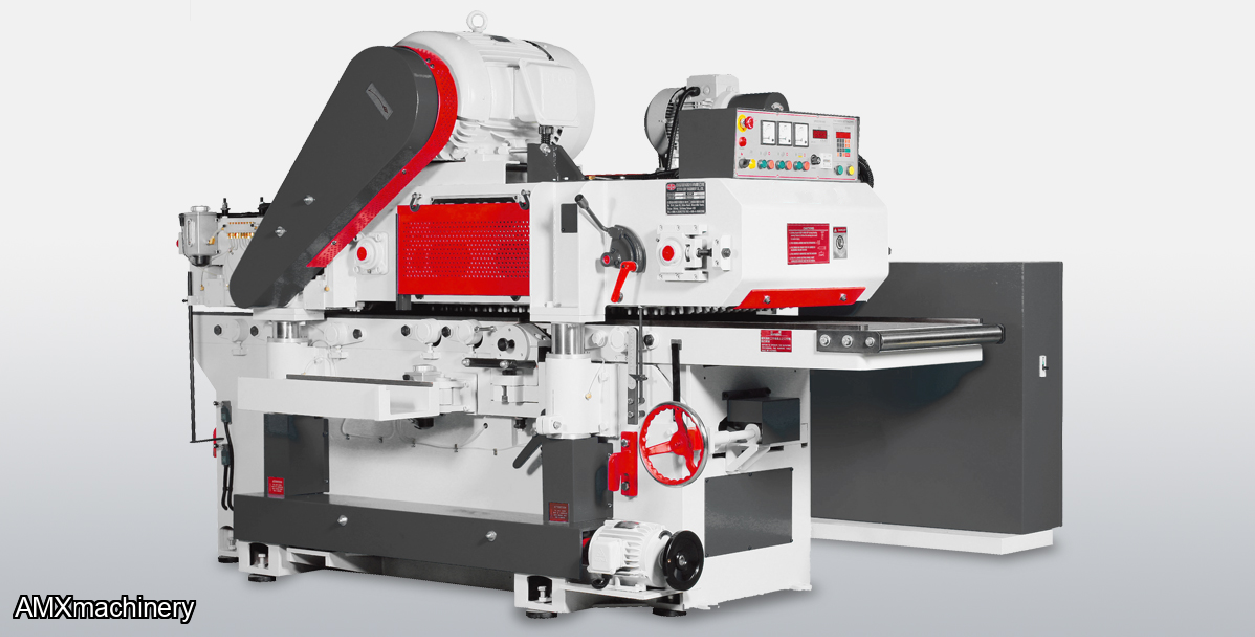

CEPILLO 2 CARAS EJE CARDAN 32"

Suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities.  They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out.  The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

• Heavy-duty cardan shaft drive for the highest durability and increased feed speeds
• Available in 24”, 32”, 39”, and 52” wide models
• Solid cast-iron construction greatly reduces vibration resulting in improved output quality and machine durability
• Cast iron bed is precision machined and chrome plated to ensure longevity and precision
• Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
• Spiral insert knife cutterheads with 8 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality
• Additional idle and driven table rolls ensure consistent feeding of the workpiece

• Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
• Easy to access control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
• Cutterheads are mounted in precision NSK class-7 ball bearings & precision housings
• Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on motor start-up
• Sectional serrated infeed roll before the top cutterhead
• Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
• Digital thickness control for quickly and precisely setting the desired thickness with accuracy of +/- 0.002” (0.05mm)
• Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
• Automatic lubrication to the conveyor feed system
• High quality Schneider electrical components to CSA/UL standard
