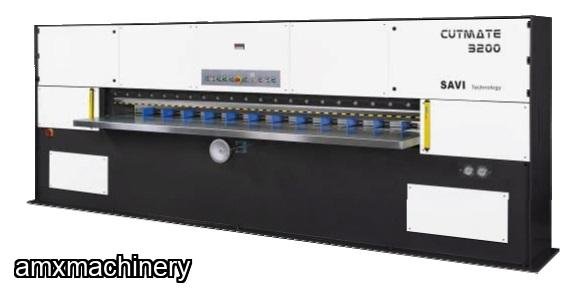

GUILLOTINA CHAPA 1 NAVAJA

PARTE # 3NN-CUTMATE3200 – GUILLOTINA PARA CHAPA – 1 NAVAJA - 3200 MM

PARTE # 3NN-CUTMATE2800 – GUILLOTINA PARA CHAPA – 1 NAVAJA - 2800 MM

Specifications

Thanks to our partner, SAVI Industri A/S from Denmark – the top market share in U.S.A and UK for veneer guillotines, we are able to manufacture veneer guillotines with original technology and know-how. The series with European superior quality of manufacturing guillotines offer the accurate linear and parallel cutting. The parallel cutting accuracy is obtained by the fact that the whole veneer bundle is fully under pressure while cutting so that buckles in the veneers will be straightened out. The series are particularly useful when cutting waving veneer bundles. CutMate series are also constructed with a view to the highest security of the operator without causing inconvenience to the working. All guillotines are completely hydraulic on both knife and pack beam. The pressure of both knife and pack beam is adjustable. Various materials including veneers, paper, plastics and so on can be cut with the series. Coupled with Double Sided Veneer Glue Applicator (GlueMate 700) & Crossfeed Veneer Splicer (UltiMate series), the perfect gluing and jointing result is accomplished with high production efficiency.

Features

- 60 mm knife cylinder

- green cutting indicator

- 150 mm wide pack beam

- with European safety standards

- JAPAN YUKEN hydraulic system

- JAPAN MITSUBISHI PLC control system

- rigid welded machine body for stable movement

- safety light barrier of knife and pack beam in front

- magnetic scale for accurate linear position measurement of the fence

- adjustable pressure with hydraulic knife and pack beam for all kinds of veneers

- "safety locker" at the front end of the knife beam (unique and only in INNOVATOR’s guillotines)

CutMate series

- special designed “emergency valve” for knife to minimize operational danger caused by mechanical faults

- extra safety valve of knife beam with additional safety knife protective cylinder to keep off any drop of knife

- two-hand operation of the knife and pack beam：no movement of the pack beam against the veneer pack made immediately when one push button is released

Recommended Option(s)

1. SECOND-CUT Technology for thick or especially hard species of veneers cutting available

By switching knife beam to second-cut mode, a thin clip of approx. 1 mm is cut off from the

veneer pack after the first trim. This unique feature which can only be found in all our guillotines is necessary when working with thick or especially hard species of veneers.
