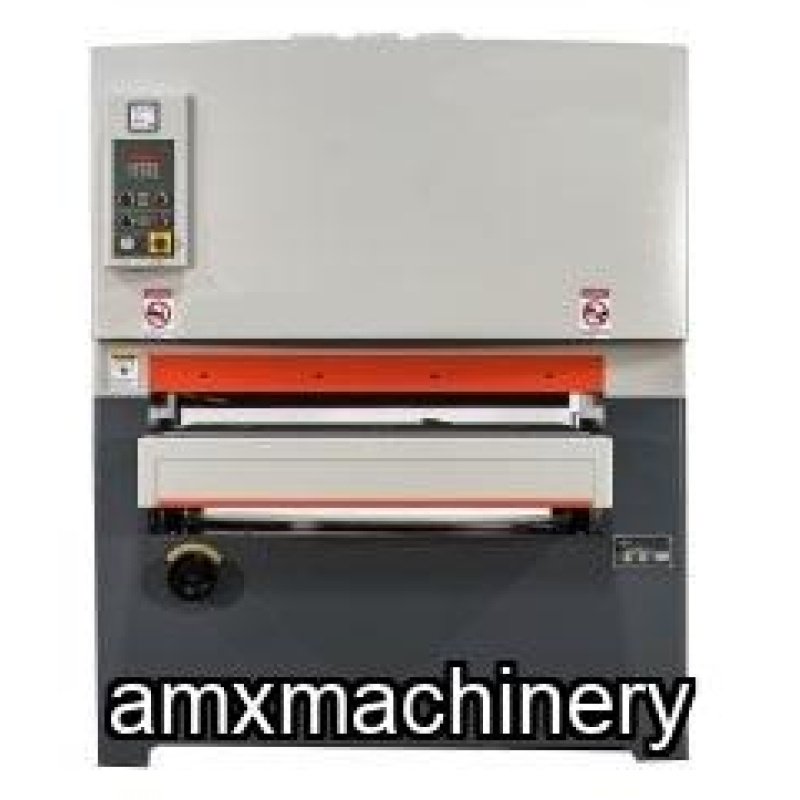

LIJADORA DE BANDA ANCHA – 43” ANCHO – 2 BANDAS

PARTE: 2NT-8-1100RC – LIJADORA DE BANDA ANCHA – 43” ANCHO – 2 BANDAS

NUEVA CON GARANTIA

• Max Working Width: 1100mm / 43"

• Configuration: Roller-Combination Head

• Number of heads: 2

* 1st Head 8" 65 Shore Rubber Contact Drum

* 2nd Combination Head with 4" rubber contact drum with 65/70 Shore Platen

• Motor: 30HP

• Size of Sanding Belt: 43-3/4" x 75"

• Mechanical Variable Speed 16 - 47.2fpm

• Max Working Height: 150mm / 5.9"

• Feed Motor: 2HP

• Table Lifting & Lower Motor: 1/4HP

• Dust Collection: (8) 5" port: 681 CFM @ points of extraction

• Amperage requirements: 230V / 460V 60HZ, 3PH: 79A / 39.5A

• Machine / Packing weight: 3,316lbs / 3,826lbs

• Machine / Packing dimensions (LxWxH): 60" x 61" x 75" / 63" x 66" x 84"

• (1) Tool box and manual

• Warranty is one year parts

• Northtech offers a full line of dust collectors for any application.

• All machines are tested stateside prior to shipment providing trouble free start up.

FEATURES

• Centralized control center with visual load meter and digital elevation

control.

• Power supply light with emergency stop control.

• Individual start/stop controls for feed and sanding head.

• Mechanical feed adjustment allows operator to change desired

feed speed from 16-47.2fpm.

• Single 30HP TEFC motor rated for continuous use delivers constant

power to sanding surfaces.

• Triple V-belt drive for full power delivery to sanding surface.

• Disc braking for rapid emergency stops.

• Full access door with lock on outbound side.

Single head shown for reference only.

• Each sanding head has quick adjust belt tracking on inbound side.

• Strong 4-Jack elevation control for parallel, precise and repeatable

sanding quality.

• 1st Head 8" 65 Shore Rubber Contact Drum

• 1/4 Turn head lock with removable puck.

* 2nd Combination Head with 4" rubber contact drum with 65/70 Shore Platen.

• 1/4 Turn head lock with removable puck.

• Individual roller and platen adjustment.

• Upper and lower elevation protection switches prevent machine

from crashing.

• (8) 5" dust port require 681 CFM @ point of extraction.

• Dust port formed into machine body for superb fugitive dust control.

• Belt tracking cycle speed is easily adjustable for product specific

oscillation.

• All sanding heads equipped with a quick switch pneumatic belt

tensioner.

• Single pneumatic hookup with regulator, filter, and master shut off

included.

• Electronic belt tracking with automatic jet blow off cleaner.

• Belt monitoring switch shuts down machine if a belt brakes as well as

prevents head from starting if not activated.

• UL/CE certified controls and electrical components are neatly

labeled and organized in the electrical cabinet.
