Identificador: 224
Abierta
Descripción

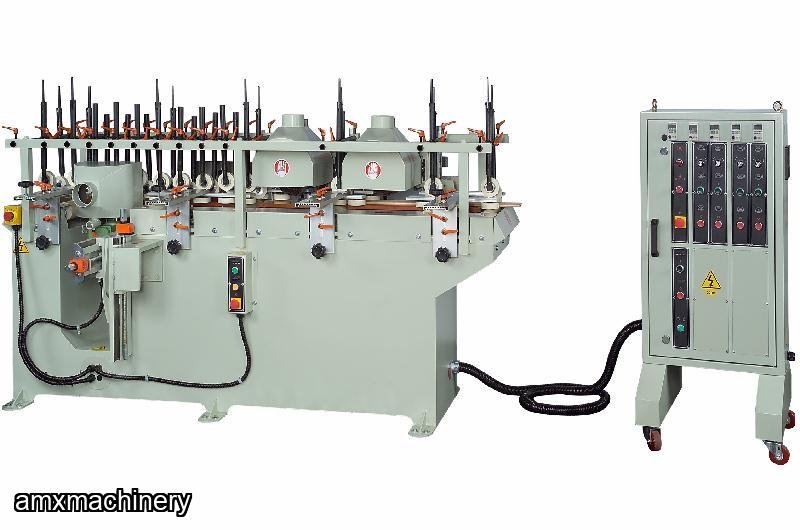

PARTE # 2TA-SD-602T - LIJADORA DE MOLDURAS – 2 ARRIBA
PARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 1 LADO
PARTE # 2TA-SD-603TU - LIJADORA DE MOLDURAS – 2 ARRIBA – 2 LADOS
Nueva con garantia

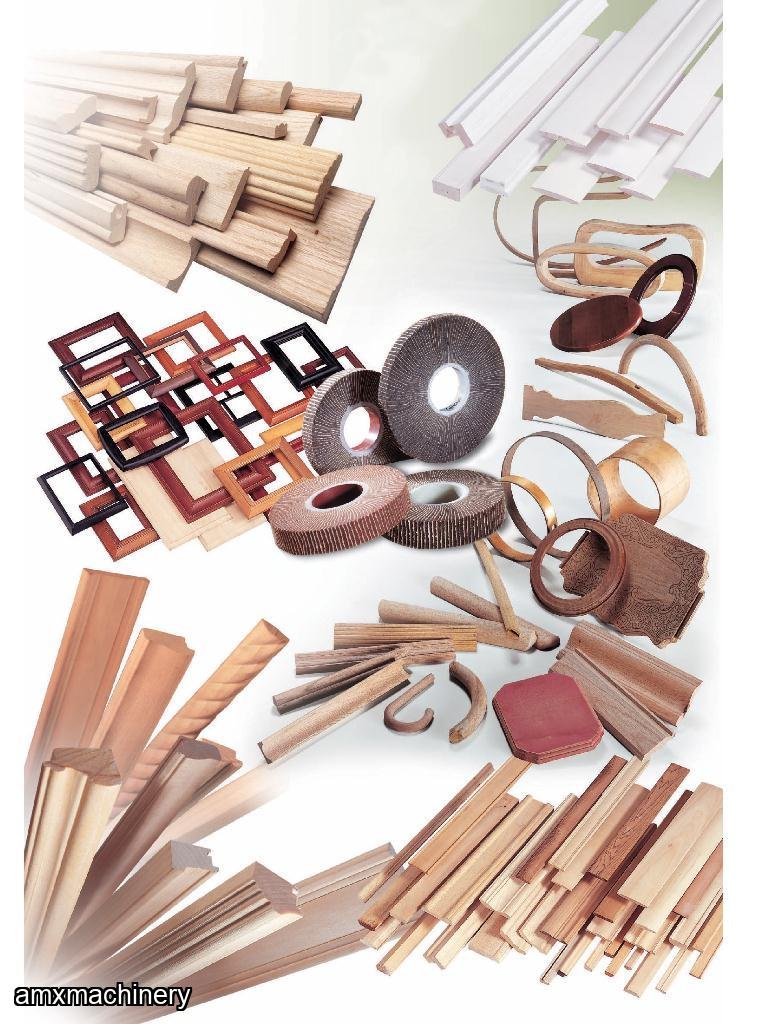

Designed for high production moulding sanding of straight stick of solid wood, veneered panel and finish between coats with profile, angular, or straight edge.

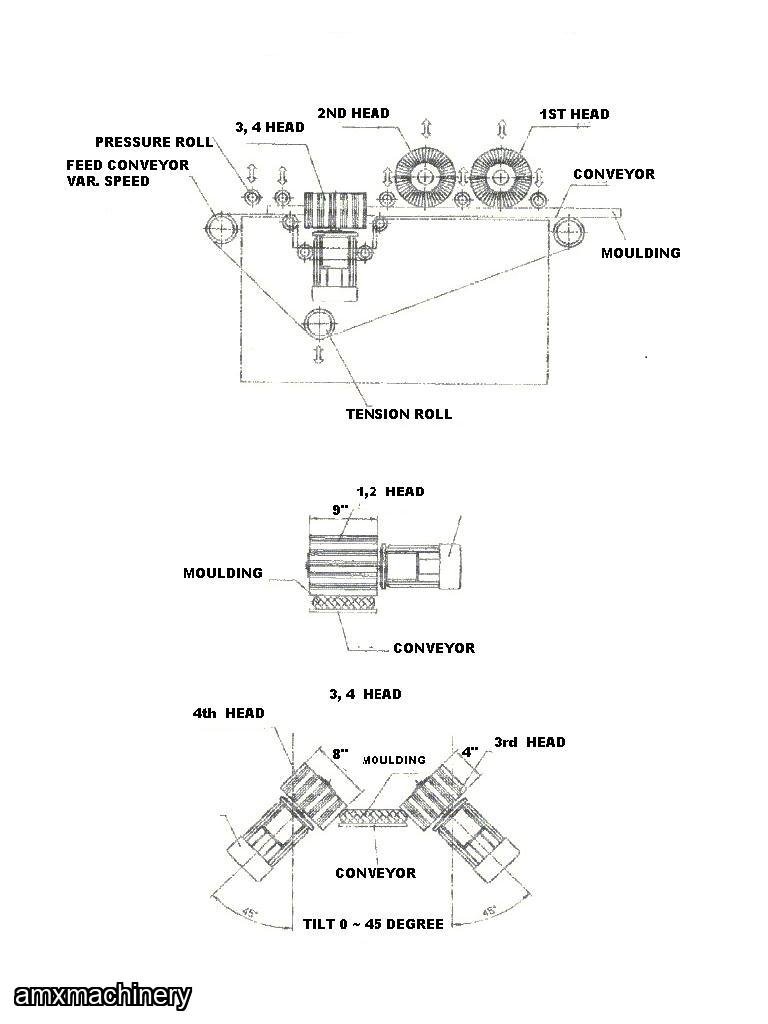

Workpiece is through feed with power spring-load pressure rolls at top, without sliding for irregual surface.

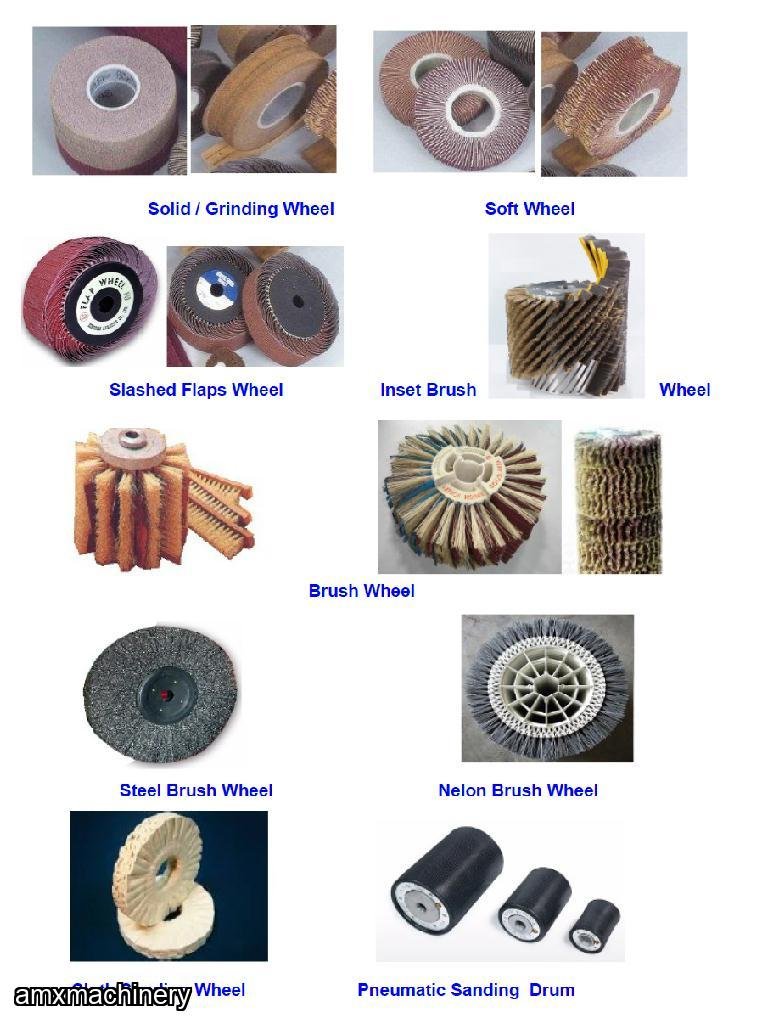

The brush, flap wheel, pneumatic drum or profile sanding head to cover all the profile sanding.
Top sanding head can be adjusted in & out, up & down.
Side sanding head can be adjusted tilt, forward & backward and up & down.
Variable feeding 20" to 80" to get different setup easily.
Every sanding head can use profile disc, brush wheel or sand belt with sponge drum for fine, detail finish.
SPECIFICATIONS |
|
Max. Sanding Width | 6" |
Max. Sanding Height | 4" |
Min. Sanding Length | 13" |
Wheel Head |
|
Brush Wheel Drive Motor | 2 HP |
Brush Tilts (universal Heads Only) | 90° ~ 180° |
Max. Sanding Wheel Dia. (Top & Bottom) | 12" |
Max. Sanding Wheel Dia. (Side) | 8" |
Sanding Spindle Dia (top & Bottom) | 1-1/4" |
Sanding Spindle Dia. (Side Head) | 1" |
Spindle Speed | 0 ~ 3600 RPM |
Profile Platen Belt Head |
|
Range of Workpiece Width | 2" ~ 70" |
Minimum Length of Workpiece | 4" |
Range of Workpiece Thickness | 1/6" ~ 4" |
Simple Belt Head |
|
Sanding Belt Size | 6" x 20" |
