Identificador: 2469
Abierta
Descripción

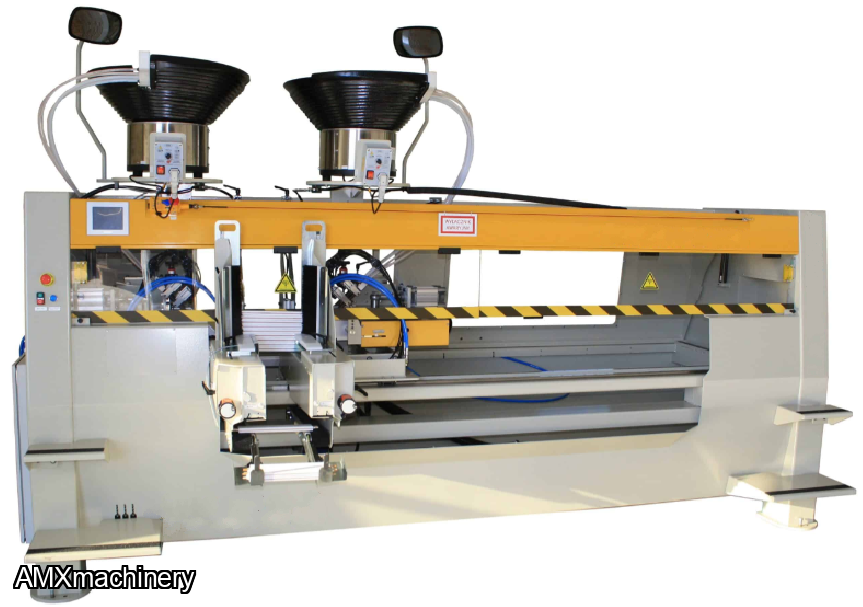

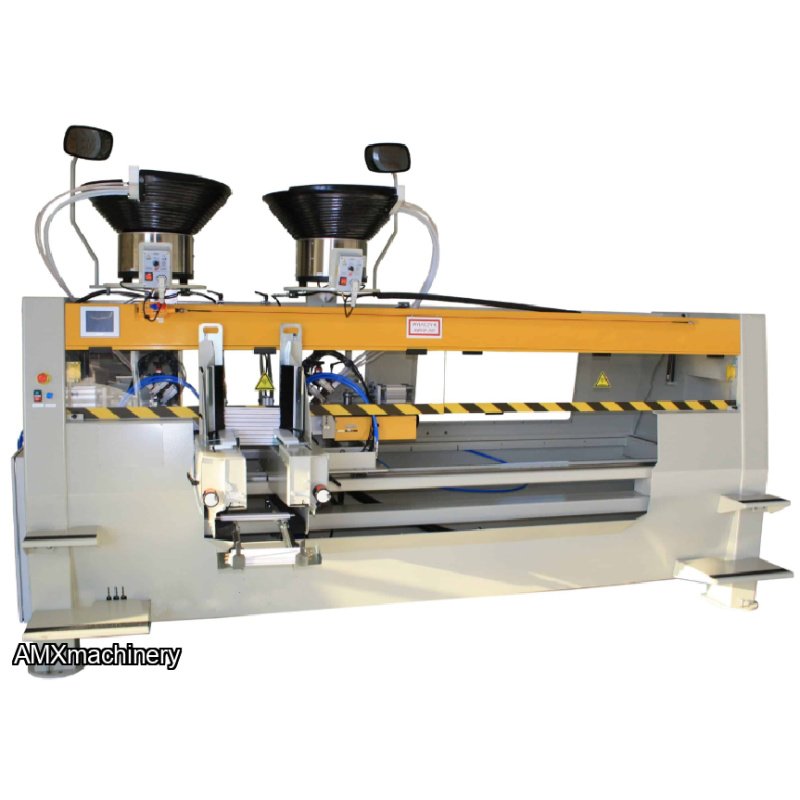

MAQUINA DE PASADORES
High quality drilling and dowel insertion

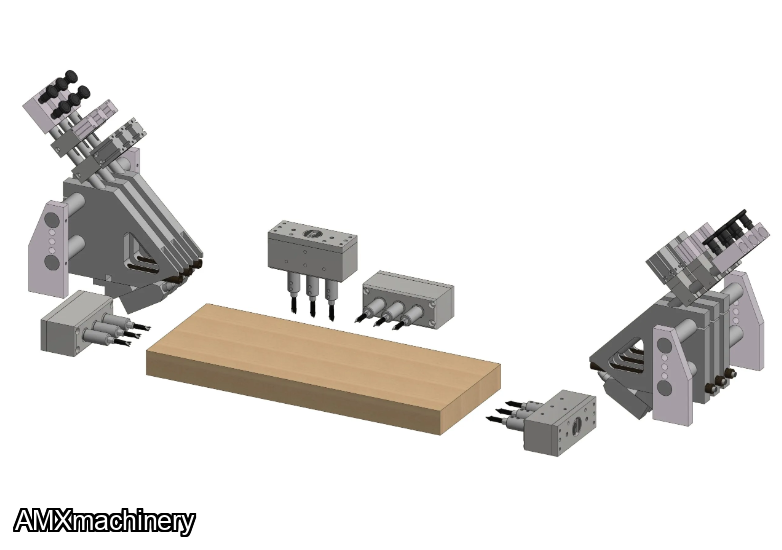

• Drilling from 4 sides : top, right, left, back
• 2 step machine – drilling and doweling
• Doweling from 2 sides (left and right)
• Capacity of up to 18 pcs/min
• Vertical magazine
• One-man operated
Extra:
• Side movement
• Single drop magazine
• Possibility to revers items out of the machine
• Can be integrated in a line of machines
• Waste Conveyer
- Length:
160 – 1500 mm
160 – 2200 mm - Height:
10 – 40 mm - Width:
25 – 250 mm
