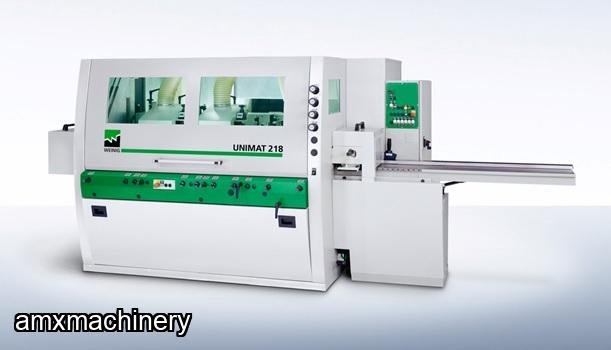

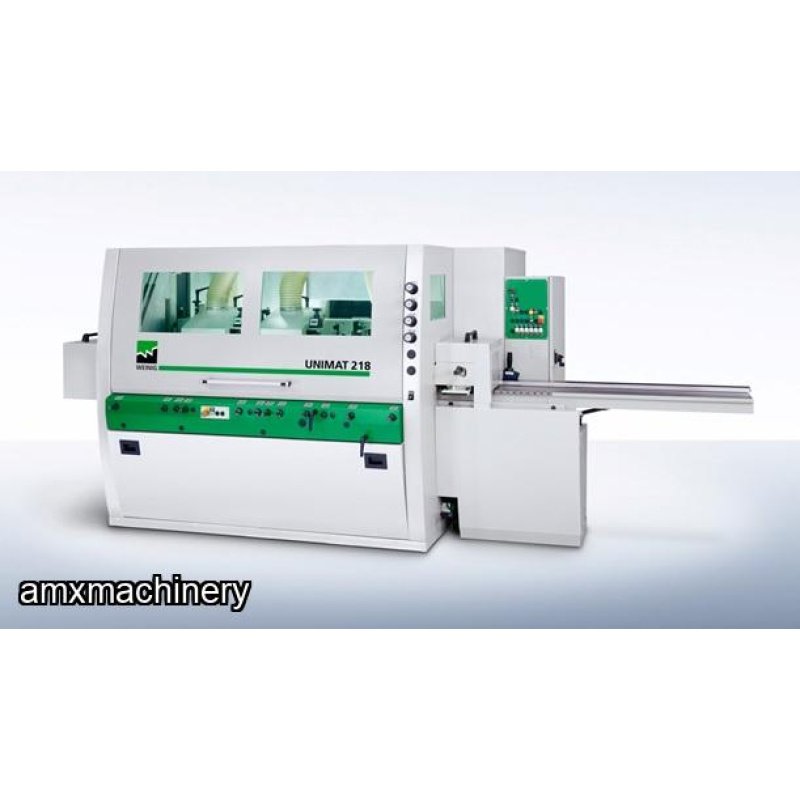

MOLDURADORA 6 CABEZALES

PARTE # 12WG-UNIMAT 218 - MOLDURADORA - 6 CABEZALES

MOLDURADORA AUTOMATICA

6 CABEZALES

CARACTERISTICAS GENERALES:

KW (HP) rpm Tool cutting circle

1 - 7,5 (10) with Electronic Brake 6000 5“ – 5-11/16“

2 - 7,5 (10) with Electronic Brake 6000 5“ – 7-7/8“

3 - 7,5 (10) with Electronic Brake 6000 5“ – 7-7/8“

4 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“

5 - 15 (20) with Electronic Brake 6000 5“ – 7-7/8“

6 - 7,5 (10) with Electronic Brake 6000 5“ – 8-7/8“

Tool arrangement BRLTTB

Working width 3/4“ – 9“

Working height 5/16“ – 4-3/4“ (with tool cutting circle 5”)

Feed Speed-variable with inverter 20 – 100 feet per minute

DigiSet (double mechanical readouts) for left and top radial

adjustments. One readout is for the tool size and the other for the

finished wood dimension.

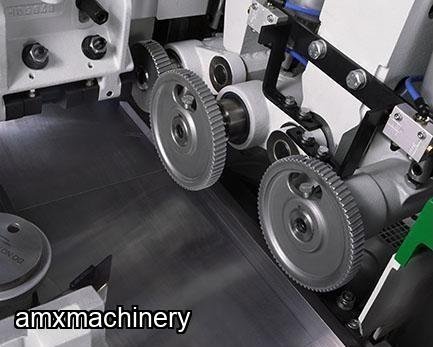

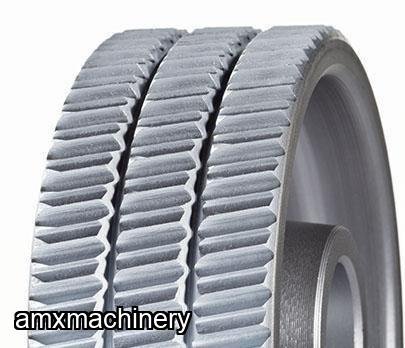

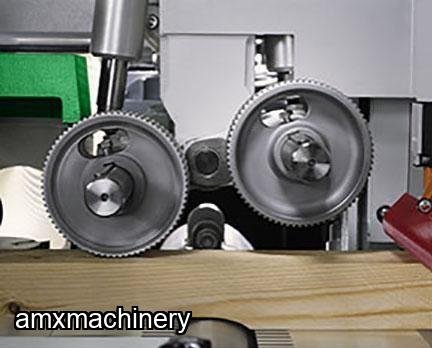

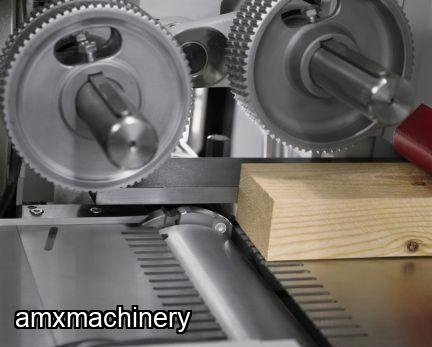

Six driven feed roller shafts from above

Two driven steel rollers in the machine table

Axial setting range of feed roller opposite the left tool holder 1 3/8”

Extension of the feed shaft opposite the left tool holders to 6”

Axial setting range of vertical spindle 3 -1/8 in.

Axial setting range of horizontal spindle 1 -3/4 in.

(1st bottom 3/16 in.)

All spindles diameter 1 -1/2"

Mechanical readouts on top spindle chip-breakers and pressure shoes.

Pressure shoe in front of left tool holder, incl. 2 lateral pressure rollers.

Receding chipbreaker in front of top spindles.

6 Additional set of spacing collars, clamping length 6-11/16”, diameter 1-1/2"

Operating voltage- 3 phase, 460 Volt, 60 Cycles according to US regulations

Straightening table, 6-1/2 ft (incl. edge jointing fence)

Machine table and fences chromium-plated (excluding infeed table and special table plates)
