Identificador: 2516
Abierta
Descripción

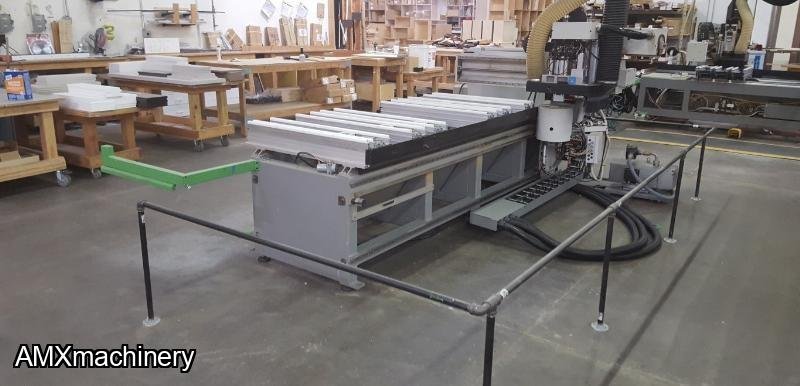

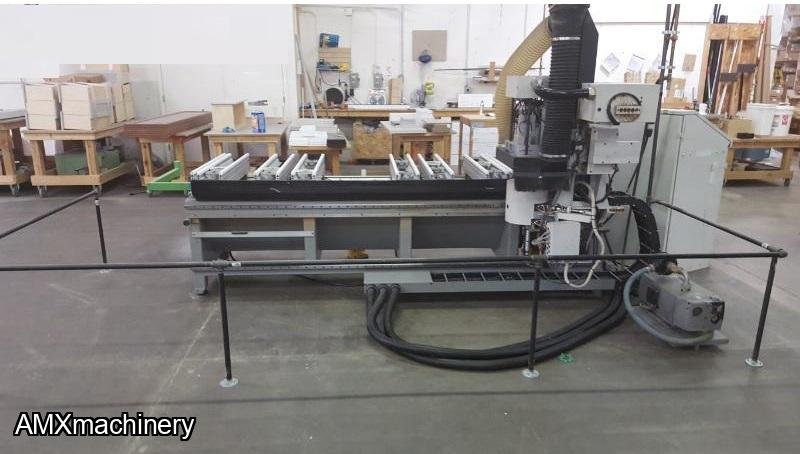

PARTE: 12585 - CENTRO DE TRABAJO CNC – BIESSE ROVER 15
USADO - MUY BUENAS CONDICIONES
Specifications:
Working field for boring & routing: "X" Axis 86.5" (2,200 mm), "Y" axis 35.3" (898 mm) for boring & 37.4" (950 mm) for routing, max. panel thickness 2.5" (65 mm).
Positioning speed:
"X" axis at 246 FPM (75 MPM), "Y" axis 147 FPM (45 MPM), "Z" axis 49 FPM (15 MPM); "X" axis moves on high precision prismatic guides and ground helical rack; "Y" & "Z" axis via hardened ground ball screw.
Work Table:

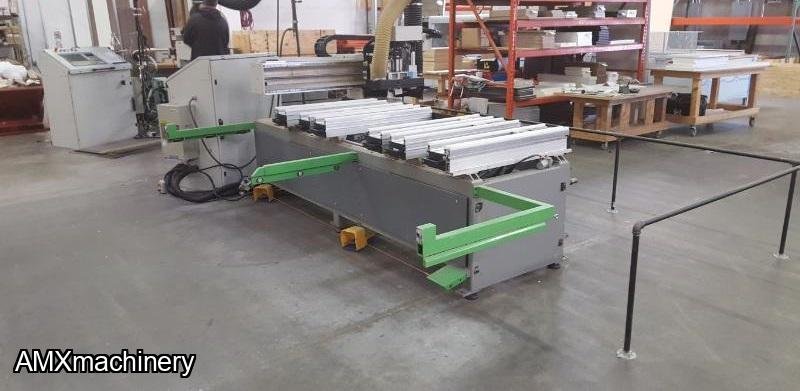

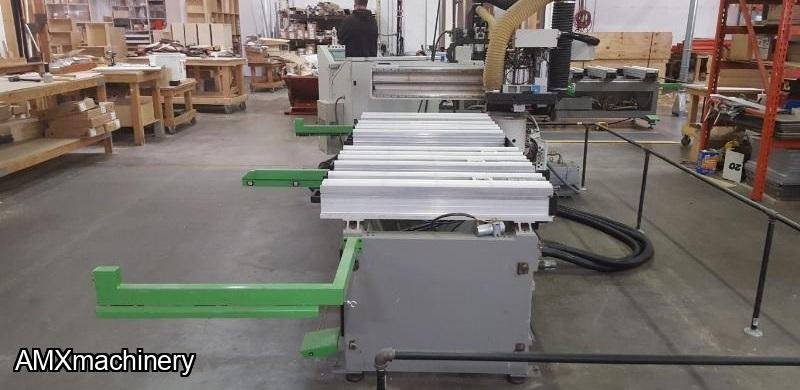

(6) Pneumatically locked & manually positioned panel supports with (2) vacuum cups each; (2) working zones with (6) pneumatic backstops, (2) pneumatic side & (2) center stops, stops raised & lowered automatically by start/stop of machining cycle.
Boring Unit:
(1) 2.3 HP - 5,135 RPM motor; (10) vertical spindles independently operated with (6) in "X" axis & (4) in "Y" axis.
(6) Horizontal spindles, (2+2) in "X" axis & (1+1) in "Y" axis; 2.5" (65 mm) max. boring depth; (1) "X" axis grooving saw with 120 mm dia blade - 5,200 RPM.
Machining:

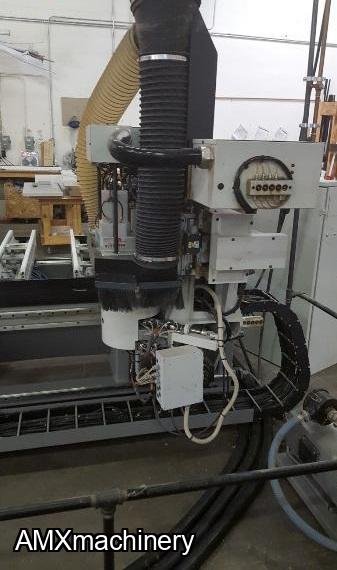

Equipped with (1) 9 HP (6.6 kW) air cooled "Quick Change" Electro-spindle with ISO 30 adaptor; router is driven by (10.2 HP (7.5 kW) inverter for variable speed from 1,000 - 24,000 RPM, RH & LH rotation.
(1) 3-position automatic tool changer mounted at the back of the machine for "on the fly" ATC.
Operator & Machine Control:

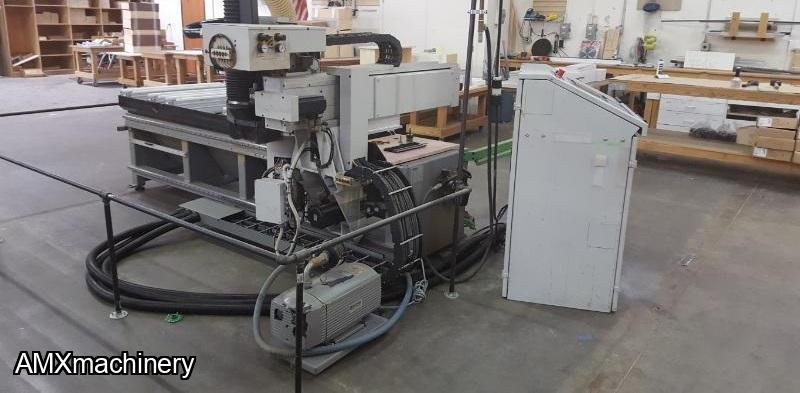

Separate control console with CNi "NC 410 Deluxe" operating system housed in air conditioned cabinet; 8" LCD monitor, displays programming graphics, numerical and function keyboard.
512 KB RAM memory, (1) 1.44MB floppy disk drive, RS-422 serial port for PC and RS-425 port for inverter connection, E-prom for machine data & subroutines, runs production programs while programming and editing.
Complete with: Stabilized auto-transformer for voltages between 200-600 Volt; (1) 100 m³/Hr vacuum pump, triple photocell barrier; assortment of misc. parts and tooling; users operator/maintenance manuals & back up disks.

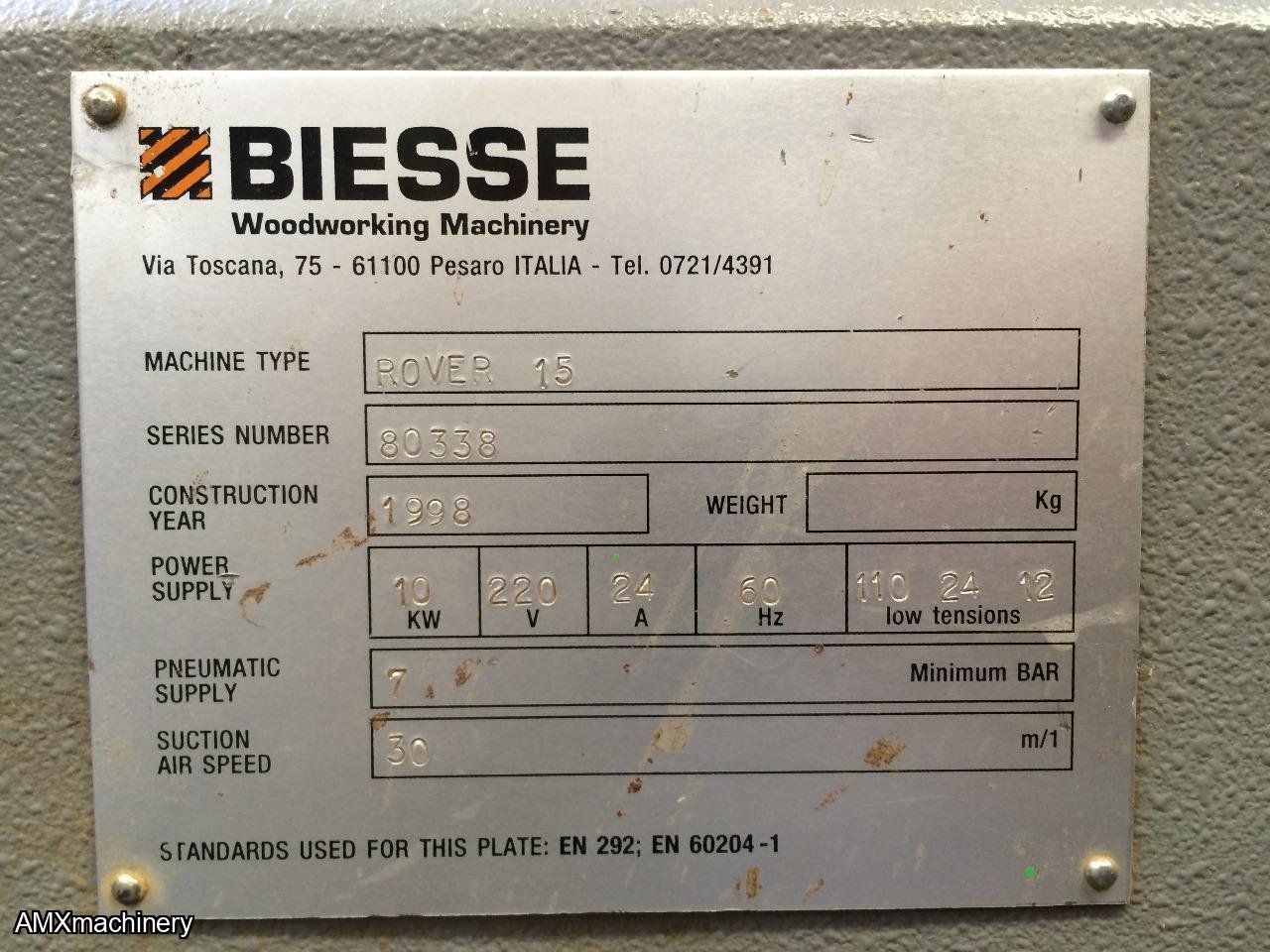

Year MFG: 1998
Elect./Voltage: 220V, 60 Cy, 3 Ph.
Dimensions: 165" L x 106" W x 75" H
Weight: 6,500 Lbs (estimate)
