PARTE: 4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200
AMXmachinery
Descripción

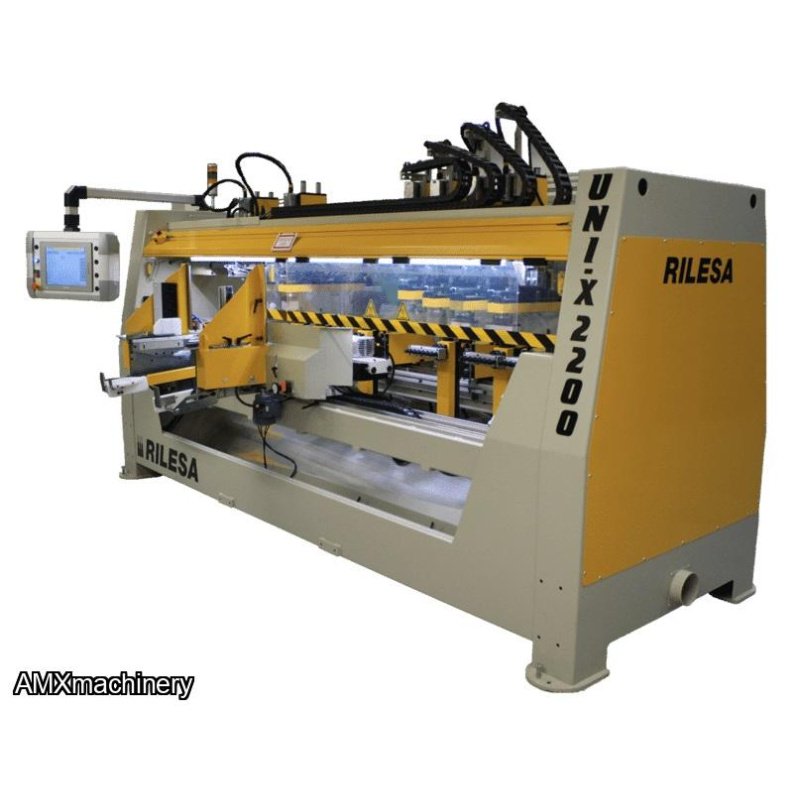

PARTE: 4RI-UNIX2200 - TALADRO PARA TAQUETES / PERNOS - RILESA - UNIX 2200
NUEVO CON GARANTIA
RiIesa Unix 2200 Drilling machine $ 115,790 euros
Tools are not included, are to be purchased separately
Our flexible dowel drilling machine. – With a large range of special equipment
Description:

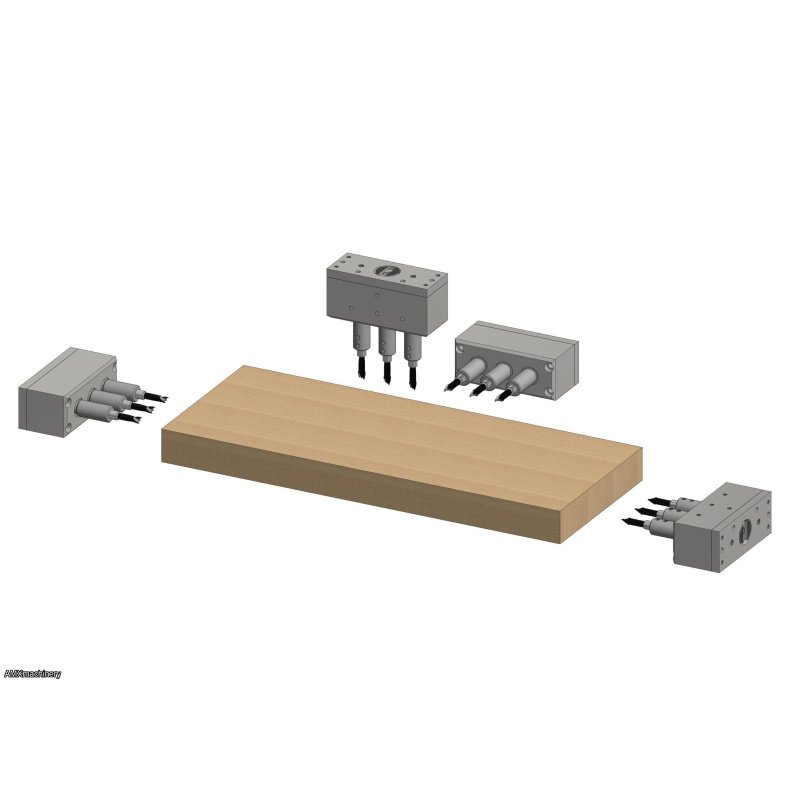

• Drilling from 4 sides: top, right, left, back
• Capacity up to 14 pcs/min
• Set-up help using light beam
• Vertical magazine
• One-man operated
Extra:
• Side movement
• Small millings
• 45 degree drilling
• Can be integrated in a line of machines
• Waste Conveyer
Workpiece Dimensions
Length:
250 – 2200 mm
Height:
10 – 65 mm
Width:
25 – 200 mm
Features:
- Horizontal drilling from the back

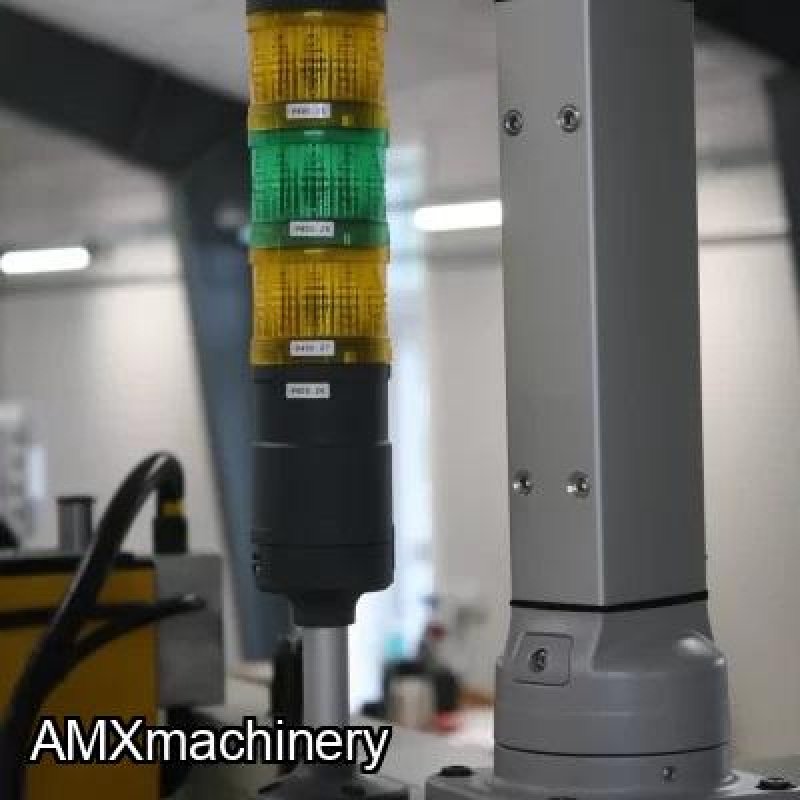

- Light tower to assist during both set-up and production
- Horizontal end drilling

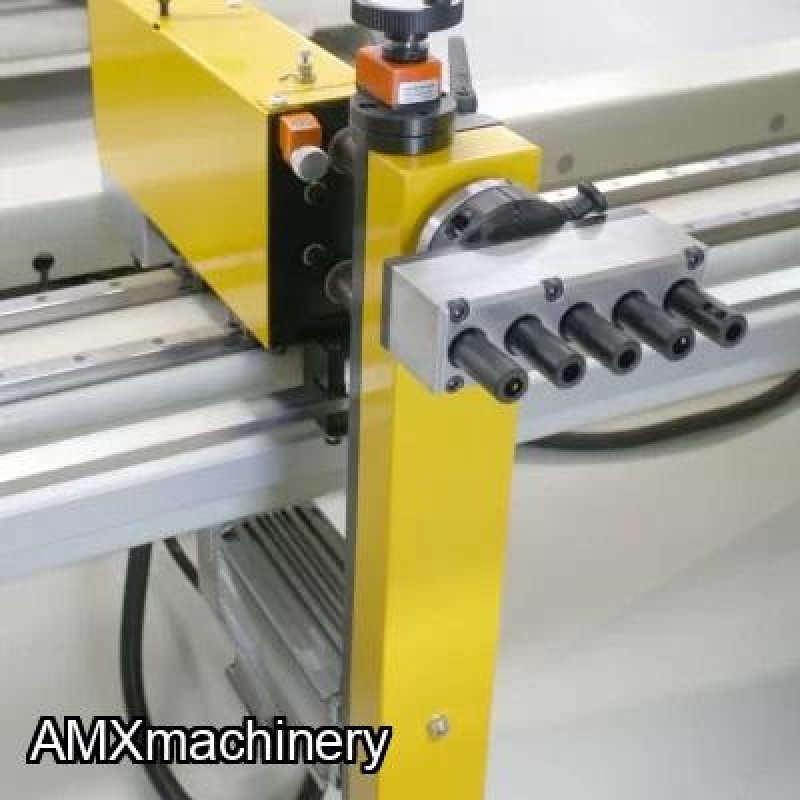

- Vertical and horizontal drilling groups
- Horizontal drilling from the back
Options:
- Different rapid change spindle systems for drill boxes
- Adjustable angle of drilling from the back
- Waste conveyor below machine
- Rilesa custom designed drill boxes
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12442 - PRENSA ARMADORA DE GABINETES - 98” X 55”
PARTE:
12442 - PRENSA ARMADORA DE GABINETES - 98” X 55”
Usada - En Buenas CondicionesEffective
Working Size: 98″ L x 55″ H x 27″ DeepMin.
Effective Working Size: 8″ L x 10″ HAutomatic/Manual
MotorizedAdjustment
of vertical and horizontal beams(2)
1.5 HP motorsJoy-stick
for manual movementClamp
timerCondition:
Cleaned/Checked
Electrical:
230V, 3PH
AMXmachinery
PARTE: AMX-10160 - EXTRACTOR DE TUBO - DIAMETRO INTERNO 19-1/2” - MOTOR 3/4 HP
PARTE: AMX-10160 - EXTRACTOR DE TUBO - DIAMETRO
INTERNO 19-1/2” - MOTOR 3/4 HP
USADO - MUY BUENAS CONDICIONES -
TODOS LOS BALEROS NUEVOS
MOTOR 3/4 HP, 220/440V, 3 FASES, 60
HZ, 1500 RPM
DIAMETRO INTERNO: 19-1/2”
DIAMETRO EXTERNO: 22”
MEDIDAS TOTALES: 31” LARGO X 22” ANCHO
X 12” ALTO
CAUDAL: 8,712 M3/HR
HECHO EN MEXICO
AMXmachinery
SIERRA DE PANELES 3200 MM
PARTE # 2TA-TS-P330H - SIERRA DE PANELES 3200 MMSpecifications2TA-TS-P330H2TA-TS-P380HCapacityMax. Cutting Length126" (3200 mm)150" (3800 mm)Max. Cutting Height0 ~ 4" (0~100 mm)Main SawbladeDiameterØ16" (Ø405 mm)Arbor DiameterØ2" (Ø60 mm)Speed3910 RPMScoring SawbladeDiameterØ7" (Ø180 mm)Arbor DiameterØ2" (Ø45 mm)Arbor Speed5100 RPMSaw CarriageForward Speed100 M/ minReturn Speed120 M/ minMotorMain Sawblade Motor20 HPScoring Sawblade Motor3 HPSaw Carriage Drive Motor1 kwHigh Pressure Blowe...
AMXmachinery
ROUTER CNC – ASIA ROBOTICA – WOOD PRO-S
PARTE # 10140 – ROUTER CNC – ASIA ROBOTICA – WOOD PRO-SEN MUY BUENAS CONDICIONES100 HRS DE USO APROX.MANUFACTURA 2012MOTOR ITALIANO 12 HPMESA PARA TABLERO DE 4 X 8 PIESMESA DE VACIO DE 4 SECCIONESINCLUYE CON LA MAQUINA:- EXTRACTOR DE POLVOS DE 3 BOLSAS DE 3 HP- BOMBA DE VACIO DE 7 HP- 4 COLLECTS Y VARIAS BOQUILLAS PARA DIFERENTES DIAMETROS DE BROCA- APROXIMADAMENTE 10 BROCAS AMANA DE 3/8” Y ¼” NUEVAS DE CARBURO DE TUGSTENO
