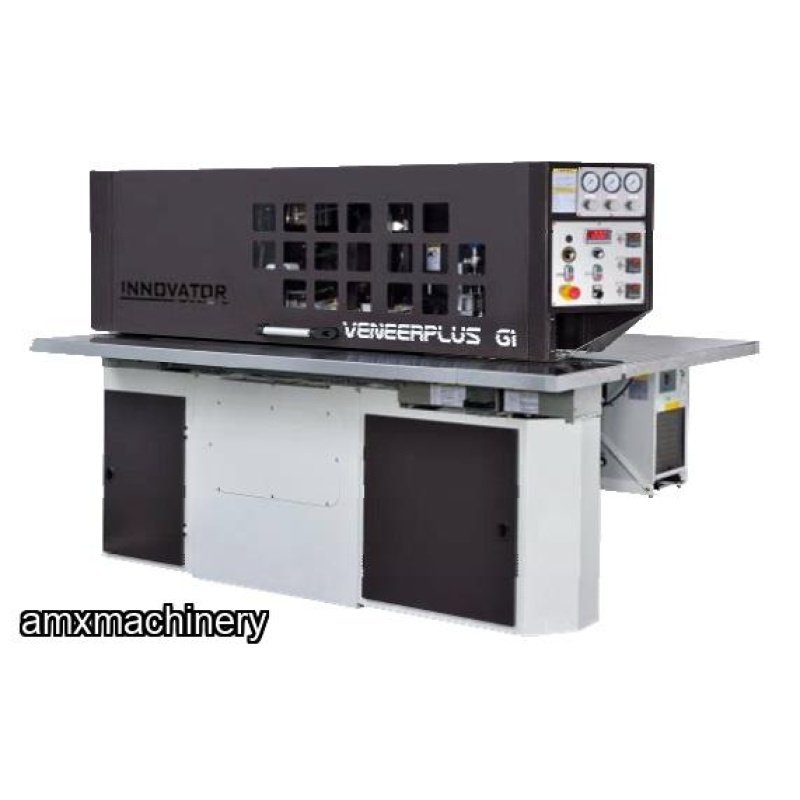

PEGADORA CANTO CHAPA - ESPESOR 0.35 - 1.5 mm

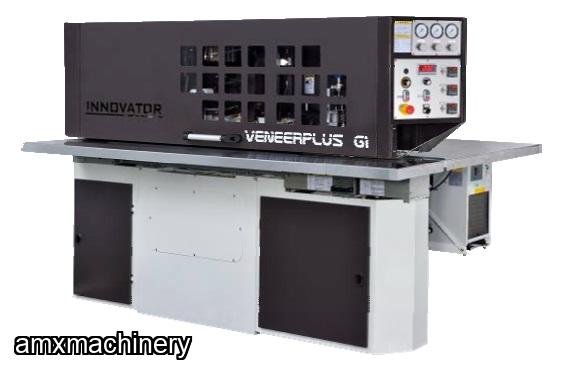

PARTE # 3NN-VENEERPLUSG1 - PEGADORA DE CANTO LONGITUDINAL PARA CHAPA

Sistema de pegamento integrado

Machine Specification

Veneer Strip Thickness (depending on veneer condition)：approx. 0.35 ~ 1.5 mm

Veneer Strip Length：min. 350 mm

Veneer Strip Width：min. 45 mm

Production Speed：up to 45 m/min.

Electric Power：approx. 8.8 kw

Compressed Air：5 bar

Heating Temperature：100 ~ 220 °C

Heating Zone：1200 mm

Dimensions (L x W x H)：2200 x 2100 x 1600 mm

Net Weight：approx. 1500 kg

Color：RAL 8019 / RAL 9003

The machine ensures to accurately and firmly bond veneer edges with no visible joint line. The longitudinal veneer splicer, VeneerPlus G1, is equipped with the integrated gluing system inside. It’s particularly suitable for the furniture industry and high-end decorative plywood. After the well-cut veneer strips are aligned evenly by the synchronized infeed rollers, the veneers are directly conveyed to the singular gluing unit for gluing edges and then transported to the heating section for glue curing. With this VeneerPlus G1, the veneer gluing and splicing processes can be accomplished within one single machine.

Coupled with Double Knife Veneer Guillotines, a perfect veneer cutting and splicing work can be achieved.

Features

- complied with European safety standards

- gluing unit driven by a speed regulated motor

- precise cooling system for prolonging glue pot life

- rigid welded machine body for stable splicing work

- special cylinder for precise control of chain pressure

- the bottom transporting chains guided by wear-resistant rails

- easy adjustment and quick access of integrated gluing system

- special-designed pressurized and heating mechanical structures

- motorized driven infeed discs instead of traditional rollers for smoother infeed

- the latest designed transporting chains of engineering plastics for reducing the heat on veneers

- reflective photocell sensor in the infeed section to ensure a perfect alignment of the jointed veneers

- adjustable speed of the glue disc for minor adjustment of the glue amount applied on the veneer edges

- both top and bottom central heating strips coated with chromium material for easy cleaning and maintenance
