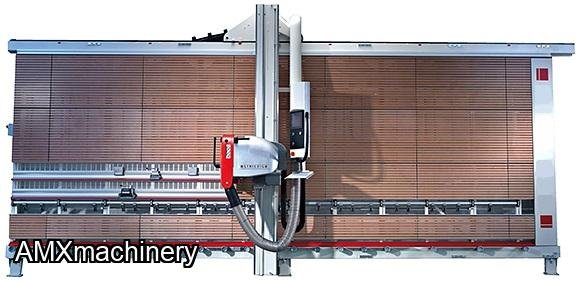

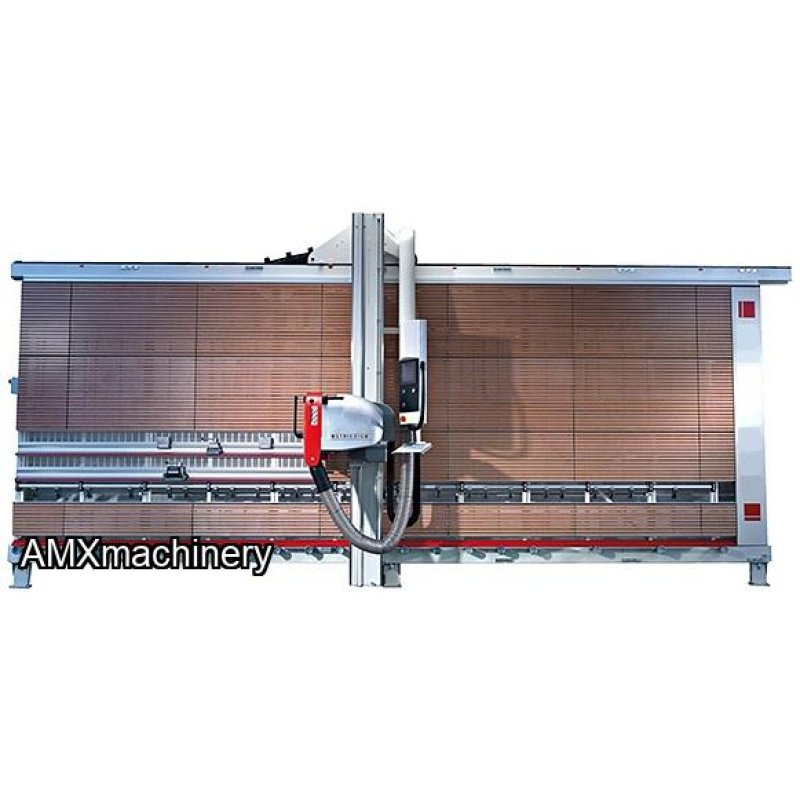

SIERRA ESCUADRADORA VERTICAL - EVOLUTION - CAP. 169” X 66” X 3-1/8”

PARTE: 2ST-EVOLUTION - SIERRA ESCUADRADORA VERTICAL - EVOLUTION - CAP. 169” X 66” X 3-1/8”

NUEVA CON GARANTIA

EVOLUTION

Same Features as Standard S, plus:

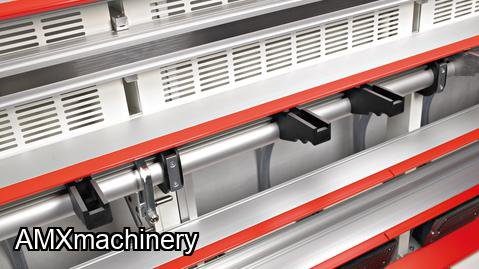

- Full-wood back support - great for thin material, narrow strips and added dust control

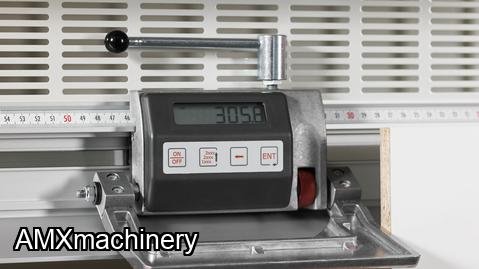

- Digital measuring in both X&Y axes with fine adjustment (auto in Y)

- 12” touchscreen and industrial PC for electronic control of saw head pivoting, plunging & locking

- Automatic locking of saw beam at vertical cutting stations

- USB port for software updates & backups

- Three auxiliary stops on upper measuring channel

- Laser light guide of horizontal cut position

- Manual feed

Note: 4” cut depth, scoring, grooving, two-speed motor & network

connection available as factory-ordered options.

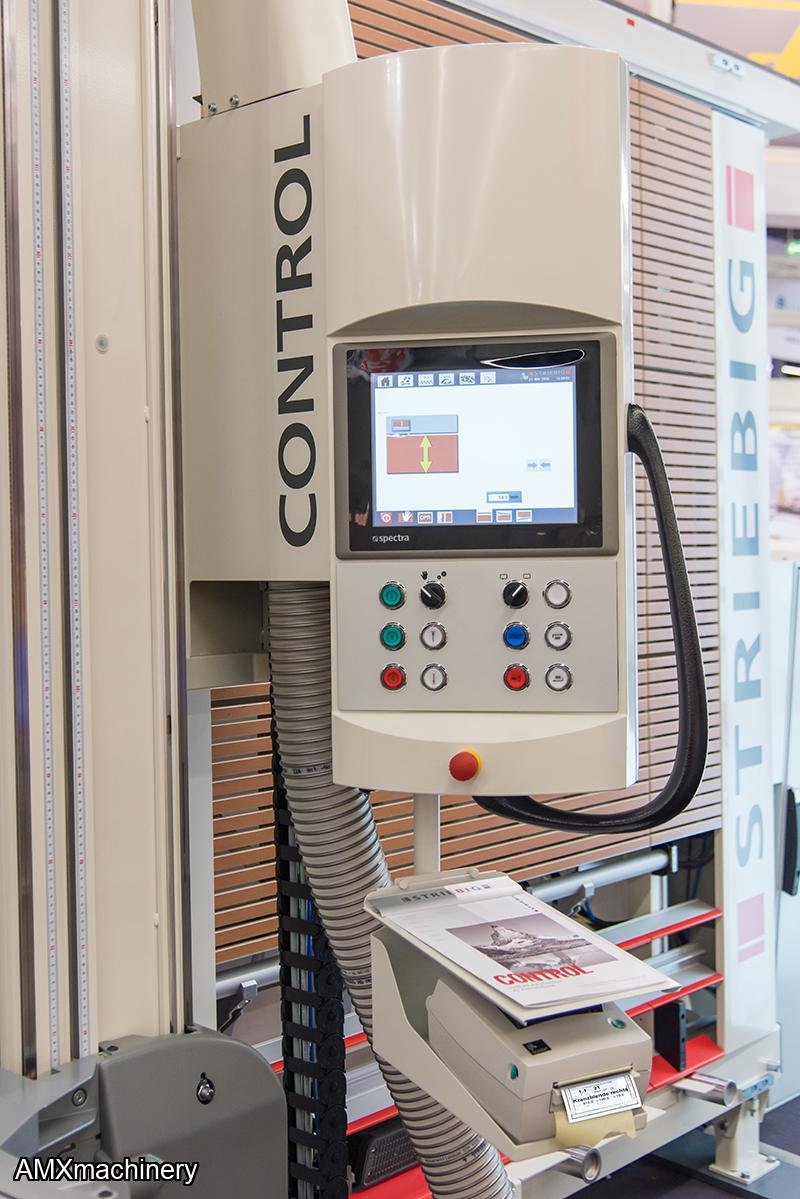

CONTROL

Same as Evolution, plus:

• Automatic, variable speed (33-82 ft/min) saw travel in both axes

• Selectable saw cycle (cut & return or cut & stop)

• Panel end sensor & start position memory for greater productivity

• EPS. automatic saw positioning system for horizontal cuts and

top of

panel recognition and trimming and repeat rip cuts.

 Note:

Scoring, EPS.X motorized flip

stop, grooving, and

4SB bottom edge trimming, slow-feed, two-speed &

variable speed motors, all available as factory ordered

options on the Control.

OPTIMIZATION

“Screen to Machine” processing

Two integrated packages for Control

BaseCut: Create simple parts lists and

ExpertCut: Import lists from your CAD or production system and optimize them from the office using the Striebig software (1 network license included)

Press the Start button and the saw & EPS.X stop go into position for the next cut; then just press “Go”

Each package includes:

• EPS.X motorized flip stop, APS automatic saw beam positioning,

label printer, software package (BaseCut or ExpertCut)

• One LAN network connection option (WLAN added by customer)
