PARTE: 12576 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1265 SUPER CUT USADA – BUENAS CONDICIONES Capacity: 75″ x 169″ Depth of Cut: 2″ Max. Blade Size: 8-5/8″(220mm) Main motor 4 HP 230 volts three phase Depth of cut 2” max Scoring unit with insert knives Saw head rotates 90 degrees for rip or cross cutting Automatic shifting back grid Two gauging bars with flip stop for midway fence Bottom rollers with manual control for easy movement of l...

PARTE: 12505 - SIERRA ESCUADRADORA VERTICAL – HOLZHER 1265 SUPER CUT USADA - MUY BUENAS CONDICIONESModel:  1265SYear of Manufacture:     2008Condition:         Very GoodElectric: 230 Voltage 60 Cycle 3 PhaseHolz Her Vertical Panel Saw Specifications:Main motor 4 HPDepth of cut 2” maxScoring unit with insert knivesSaw head rotates 90 degrees for rip or cross cutting Manual shifting back gridgauging bar with flip stop for midway fence with scaleBottom roller with manual ...

PARTE: 4EL-DSX - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DSX SERIE DSX-155 SERIE DSX-185 SERIE DSX-215   SERIE DSXL-155 SERIE DSXL-185 SERIE DSXL-215   SERIE DSX1/2L SERIE DSX1/2L SERIE DSX1/2L Model & Dimensions (mm) 155 185 215 Maximum cutting length 3300 3300 4300 Maximum cutting height - Horizontal 1505 1805...

PARTE: 4EL-D - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE D SERIE D-155 SERIE D-185 SERIE D-215  Model & Dimensions (mm) 155 185 215 Maximum cutting length 3300 3300 4300 Maximum cutting height - Horizontal 1505 1805 2105 Maximum cutting height - Vertical 1550 1850 2150 ...

PARTE: 4EL-DS - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DS SERIE DS-155 SERIE DS-185 SERIE DS-215   SERIE DSL-155 SERIE DSL-185 SERIE DSL-215   SERIE DS1/2L SERIE DS1/2L SERIE DS1/2L  Model & Dimensions (mm) 155 185 215 Maximum cutting length 3300 3300 4300 Maximum cutting height - Horizontal 1505 1805 ...

PARTE: 4BA-DPM-ED-2141 – SIERRA ESCUADRADORA VERTICAL – CAP. 2100 MM X 4100 MM X 60 MM Nueva con garantía Demo model with about 30 hours on it Specifications - Comes with digital readouts on the vertical and horizontal axis, readout in decimal inches or mm - Processing sheets both horizontally and vertically - Cutting height is 2100mm - Cutting length is 4100mm (161") Actual overall length of machine is 16’.4” - Weight 2400 lbs - Thickness of cut i...

PARTE: 2ST-COMPACT-PLUS-TALL- 5207 - ESCUADRADORA VERTICAL - COMPACTA - CAP. 181” X 81” X 2-3/8”NUEVA CON GARANTIA Motor 5 HP• Swiss made quality for accuracy and durability!• Y-axis digital measuring for horizontal cuts with kerf compensation for top down strip cutting• One-piece fully welded frame, suitable for free-standing or wall-mount installation• Heavy- duty support rollers with integral panel stop assembly• Full length heavy-duty center shelf with moveable alumi...

PARTE: 12528 - SIERRA VERTICAL - ELCON D215USADA - BUENAS CONDICIONESMFG. 2013

PARTE: 2ST-COMPACT - SIERRA ESCUADRADORA VERTICAL - COMPACT - CAP. 122” X 65” X 2-3/8” NUEVA CON GARANTIA• 5’5” x 10’2” cut capacity; 2-3/8” (60mm) cut depth• 5-1/4hp, 3-ph high-efficiency motor w/ electro-mechanical brake• One-piece full-length centershelf with moveable aluminum fingers• Integral full-length wood support area for small part support• Specially designed measuring stop for use w small partsFlexible and EconomicalThe STRIEBIG COMPACT is the entry leve...

PARTE: 2ST-4DCNC - SIERRA ESCUADRADORA VERTICAL - 4D CNC - CAP. 208” X 88” X 5” TAMANO HASTA 360” X 120”Motor 7.5 HP NUEVA CON GARANTIASimilar to Control above, plus (except):- Base size 7’ 4” x 17’ 4” cut capacity (9’ 10” cut length via CNC control); up to 10’ x 30’ capacity available- Available options include: precision panel lifters, programmable panel pusher, automatic saw beam positioning, scoring, EPS.X motorized stop, simple on-screen o...

PARTE: 2ST-EVOLUTION - SIERRA ESCUADRADORA VERTICAL - EVOLUTION - CAP. 169” X 66” X 3-1/8” NUEVA CON GARANTIA EVOLUTION Same Features as Standard S, plus: - Full-wood back support - great for thin material, narrow strips and added dust control - Digital measuring in both X&Y axes with fine adjustment (auto in Y) - 12” touchscreen and industrial PC for electronic control of saw head pivoting, plunging & locking - Automatic locking of saw beam at vertical cutting...

PARTE: 2ST-STANDARD-S - SIERRA ESCUADRADORA VERTICAL - STANDARD-S - CAP. 169” X 66” X 3-1/8”  NUEVA CON GARANTIA• Swiss made quality for accuracy and durability!• Very stable, all welded steel frame suitable for free-standing or wall-mount installation• Heavy-duty panel support rollers with integral foot pedal braking system• Convenient, sturdy, two-section mid-shelf with moveable aluminum fingers allows comfortable working of small parts and ability to stage material on...

PARTE: 2ST-STANDARD - SIERRA ESCUADRADORA VERTICAL - STANDARD - CAP. 169” X 66” X 3-1/8”  NUEVA CON GARANTIA• Swiss made quality for accuracy and durability!• Very stable, all welded steel frame suitable for free-standing or wall-mount installation• Heavy-duty panel support rollers with integral foot pedal braking system• Convenient, sturdy, two-section mid-shelf with moveable aluminum fingers allows comfortable working of small parts and ability to stage material on one...

PARTE: 2ST-COMPACTPLUS - SIERRA ESCUADRADORA VERTICAL - COMPACT - CAP. 181” X 65” X 2-3/8” NUEVA CON GARANTIAAll of the above, plus:• 15’1” cut length• Split full-length center shelf useful for staging material• Y-axis digital measuring for horizontal cuts• Six template bar stops for setting common rip cutsOptional:- For longer XL (6164) frame to cross-cut 17’6”- For taller (207) frames to cross-cut 6’9-1/2” - For tallest (220) fr...

PARTE: 12311 - SIERRA ESCUADRADORA VERTICAL - HOLZHER 1265 USADA - MUY BUENAS CONDICIONESSupercut with scoring; 75" X 169" capacity; 4 HP main motor; 1-7/8" maximum depth of cut; 220 mm diameter saw blade; saw head rotates 90° for rip and crosscutting; manual moving back grid via hand lever; (2) length stops; optional lower stop rail; hinged mid support rail; bottom rollers for easy movement of large panels; self-contained dust collection

PARTE: 12310 - SIERRA ESCUADRADORA VERTICAL - ELCON USADA - MUY BUENAS CONDICIONES YMFG: 2005 Voltage: 230V 60Hz 3Ph 7-1/2 HP 4,200 RPM motor; 163" horizontal cutting capacity; 72" vertical cutting capacity; 12" blade capacity; SIKO digital readout with 2 meters (78.75") magnetic band installed for horizontal positioning of the saw head; rigid welded box steel frame with (4) vertical cutting positions; round upper guide rail with concave bearings for smooth operation; equipped...

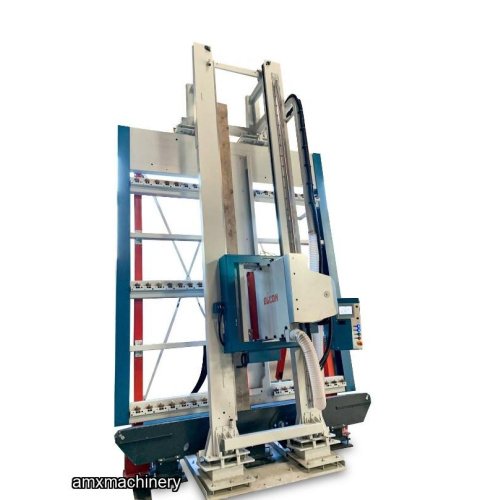

SIERRA ELCON TITAN CUTTING HEIGHT 3500 MMIt is safe to say that every Elcon panel saw is custom built and hand made in the Netherlands. And every now and then we create a machine that is truly unique due to the specific customer's needs. Behold this TITAN that is made to cut prefab walls of up to 200mm thick. Cutting height is an impressive 3,5 metres high!Would you like to know more? Please contact us.

SIERRA ELCON SUPRA 18000 MM X 3500 MM X 120 MMFollowing up on last weeks custom built Elcon. The spotlight is on the SUPRA, a horizontal panel saw. Specifically made to handle ultra large panels with sizes of up-to 18m x 3,5m. It cuts through various kinds of materials with thicknesses of up-to 120mm.The machine in the picture is in use by NAFFCO FZCO in the UAE, a world leader in firefighting equipment. Contact us for more information. Elcon, precisely for you.

ELCON 320 DSX-E TO CUT THROUGHT 0-135 MM AUMINUMWhen do you feel challenged as a company?When a customer asks you to create something out of the ordinary.In this case German trailer manufacturer Brüggen needed a solution to cut 14m long x 3m20 wide sandwich panels for box bodies. Most of them are used to build reefers to transport perishables. We accepted the challenge and delivered this custom built space saving solution. A 320 DSXE 14.300.Looking for something similar, feel free to challeng...

ELCON 320 DSX-E TO CUT THROUGHT 0-135 MM AUMINUMA vertical panel saw can be used to cut through various materials, like wood based,plastics, composites etc.This episode's custom built Elcon panel saw was developed to cut through aluminium tailgate / cargolift. A bar code scanner tells the machine to cut off the left and left and right side. The sawing speed is automatically adjusted to the thickness of the material, in this case up to 135mm!
