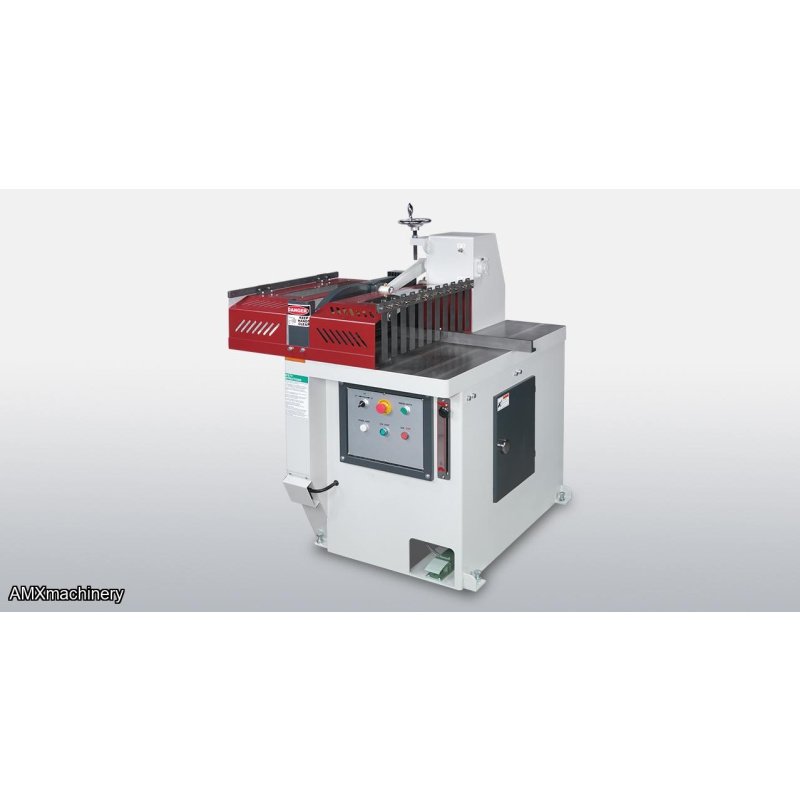

PARTE: 2CK-PCS24
Is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
- Large cutting capacity from 2”x21” up to 8”x 8”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
KEY ADVANTAGES
- Available in Right Hand & Left Hand configuration
- Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 8″ x 8″
- Powerful 15HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
- Fast cutting cycle with up to 40 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
|
Cutting capacity (thickness x width) |
2″x21″, 4″x19″, 6″x15″, 8″x8″ |
|
Cycle speed |
40 strokes/min |
|
Cycle operation |
Air / mechanical |
|
Saw blade size |
24″ max. (20″ min.) |
|
Saw arbor diameter |
1″ |
|
Saw blade speed |
2400 RPM |
|
Dust exhaust diameter |
Ø4″ x 2 |
|
Air consumption |
27.5 CFM |
|
Motor |
15 HP |
|
Table size |
45.3″ x 26″ |
|
Net weight |
1058 lbs |
|
Gross weight |
1433 lbs |
|
Machine dimensions (LxWxH) |
40.2″ x 45″ x 55″ |
