Identificador: 1680
Abierta
Descripción

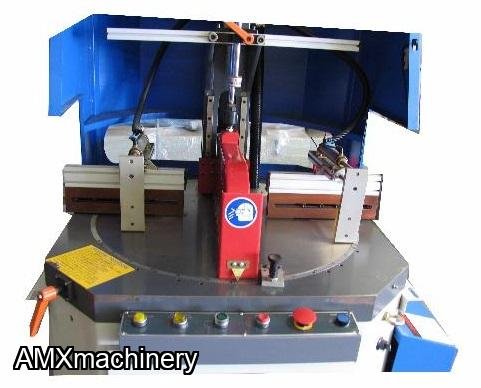

PARTE: 2TA-CS- 20RL45 – SIERRA TRONZADORA DE 45 A 90 GRADOS AJUSTABLE – DISCO 20”
NUEVA CON GARANTIA
Features:
Adjustable maximum 45 degree to the right or left or 90 degree angle setting for semi-automatic, fast cutting.
Semi-automatic by pneumatic movement cutting.
Auto. cutting cycle simply operated by foot switch.
Sealed long-life ball bearings.
Full 10 HP motor for powerful cutting capacity.
Precision ground cast iron table with heavy metal cabinet stand.
Easy operation for furniture, lumber, door, pallet or other manufacturing.
Clamp and guard automatically holds the lumber within cutting period and releases it after cutting.
Saw blade rises from under the table and return right after cutting for safety operation.
Magnetic control with overload protection.
|
SPECIFICATIONS |
2LB-CS-20RL45 |
|

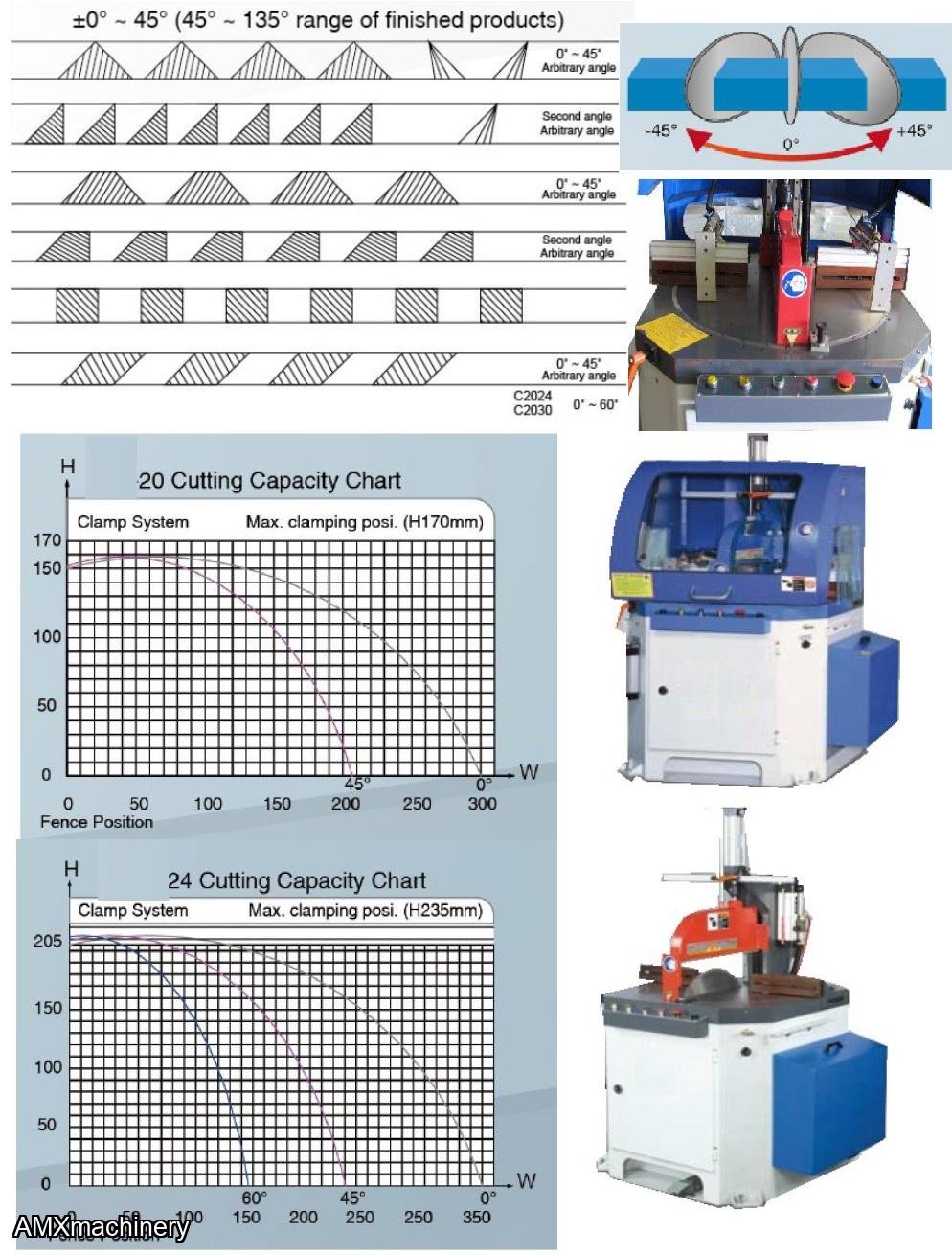

Cutting Capacity (H x W) |
3/4" x 11" |
|
90 Degree |
2-1/8" x 6" |
|
45 Degree |
1-1/2" x 12-1/2" |
|
45 Degree |
1/2" x 13-1/2" |
|
Designed Cutting |
25 Cycles/Min |
|
Saw Blade Diameter |
20" |
|
Saw Blade Arbor |
1" |
|
Saw Blade Speed |
3600 RPM |
|
Air Pressure |
90 PSI |
|
Dust Hood |
4" |
|
Motor (220/440V) |
10HP 3PH |
|
Overall Dimension (W x L) |
47" x 40" |
|
N.W. |
910 |
|
G.W. |
1200 |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12492 - EXTRACTOR DE TURBINA - 3 HP
PARTE: 12492 - EXTRACTOR DE TURBINA - 3 HP
USADO - MUY BUENAS CONDICIONES
MOTOR: 3 HP (2.2 KW), 220/460V, 3
FASES
ENTRADA REDONDA: 10”
SALIDA RECTANGULAR: 4” X 6”
MEDIDAS TOTALES: 19” ANCHO X 18”
FONDO X 24” ALTOVideo: https://vimeo.com/870512842
AMXmachinery
MOLDURADORA 6 CABEZALES
PARTE # 12WG-UNIMAT 218 - MOLDURADORA - 6 CABEZALESMOLDURADORA AUTOMATICA6 CABEZALESCARACTERISTICAS GENERALES:KW (HP) rpm Tool cutting circle1 - 7,5 (10) with Electronic Brake 6000 5“ – 5-11/16“2 - 7,5 (10) with Electronic Brake 6000 5“ – 7-7/8“3 - 7,5 (10) with Electronic Brake 6000 5“ – 7-7/8“4 - 11 (15) with Electronic Brake 6000 5“ – 7-7/8“5 - 15 (20) with Electronic Brake 6000 5“ – 7-7/8“6 - 7,5 (10) with Electronic Brake 6000 5“ – 8-7/8“Tool arrangement ...
AMXmachinery
PARTE: 12322 - PUNZONADORA - 30 TONS
PARTE: 12322 - PUNZONADORA - 30
TONS
USADA - BUENAS CONDICIONES
Tonnage
capacity:
30 tons
Maximum material thickness:
1/4" mild steel
Punching
capacity:
1" dia. - 1/4" mild steel
3-1/2" dia. - 12 ga. mild steel
Sheet
size:
18" x 30"
Throat
depth: ...
AMXmachinery
TRISCADORA 10-45 MM
PART # 4VF-SV45MN - TRISCADORA PARA SIERRA CINTAS 10 -45 MMNueva con garantiaPossibility to choose the setting: left/right or left/right/straight. Adjustment of the feed pitch, of the setting height and of the tooth bending degree; self centring clamps. Workbench model.Bandsaw Thickness [min-max]: 0,5 – 1,00 mmBandsaw Width [min-max]: 10 – 45 mmSetting Pitch [min-max]: 5 – 25 mmTwo types of setting: Net – Gross Weight: 3,8 – 4,5 kgMachine Dimensions [D x W x H]: 35 x...
