Identificador: 1659
Abierta
.jpg)
Descripción

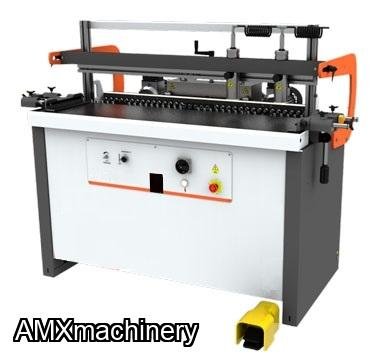

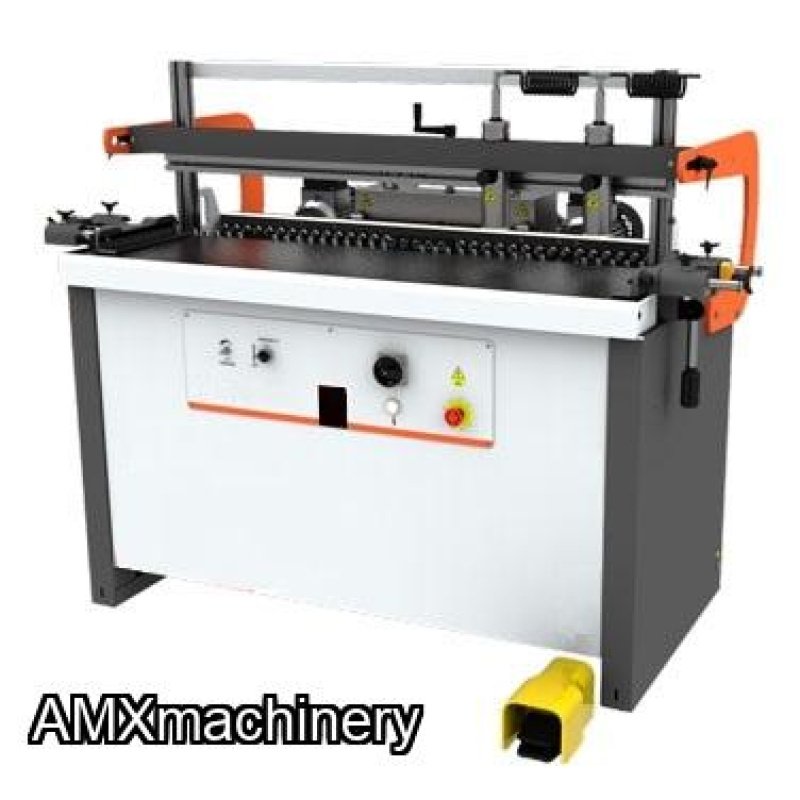

PARTE: 2JG-MAG-SYSTEM35 - TALADRO MULTIPLE - MAGGI SISTEMA 35
Provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle
- Accurate positioning of the boring unit to the table with digital readout
- 0 to 3.25" adjustable drilling depth with patented spiral setting device
- (4) patented quick release material clamps with auto-setting to firmly hold material to table
- (2) Powerful 2 HP motors
- 52.4" x 16.2" cast iron table
- Side fences with mechanical digital readout for quick and accurate setting
- 120" line boring fence with (4) stops
- Foot actuated pneumatic clamps and drill cycle
- Includes: Magnetic Starter with overload protection and (35) quick change chucks
- Dust Outlet: 3"
- Voltage: 230V 3-Phase
- Net weight: 705 lbs
- Dimensions: 65.75" x 38.9" x 50" Tall
- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall
- Crated Weight: 995 lbs.
