PARTE: 11912 – POSTFORMADORA – MIDWEST AUTOMATIONEn buenas condicionesTodos los datos estan en la ficha tecnica edjunta en el area de fotografias

PARTE: 11834 - PINCH ROLLER - MIDWEST AUTOMATION 2150En buenas condicionesPara mas informacion contactenos

PARTE: 11903 – INDEX TABLE – EVANS MACHINERY 4253Very good condition5' x 12' capacityIncluding roller section between panel support railsRails equipped with beveled rollers to transport panel to end stopEnd stop with bump switch to activate panel dropPanel is driven to end stop with powered drive rollerElectric 230 volt, cycle, 3 phase

PARTE: 11631 - CORFAB MACHINE - MIDWEST AUTOMATION 1520EN PERFECTAS CONDICIONES, RECONSTRUIDA TOTALMENTELISTA PARA OPERARALIMENTACION Y TROMPOS: 3 HP, 230V, 3 FASES, 60 HZUNIDAD HOT MELT 230 V, 1 FASEAIRE 100 PSIVELOCIDAD 26 FT/MINDIMENSIONES TOTALES: 25.5 PIES LARGO X 80" ANCHO X 58" ALTOALTURA TRABAJO 36"PESO ENVIO: 4500 LBSCORE WIDTH: 14" MIN TO 48" MAXBUILD UP STRIP: WIDTH 1/2" TO 1-1/2" - THICKNESS 3/8" TO 3/4"This machine will do the following profiles: 90°, 180°,“D” wrap, self-edge ...

RODILLOS DE POLIURETANO PARA POSTFORMADORAS EVANS MACHINERYPARTE # 2EV-10707 - RODILLO DE SILICONPARTE # 2EV-10708 - RODILLO CORTOPARTE # 2EV-10709 - RODILLO LARGO

RESISTENCIAS DE REPUESTO EVANS MACHINERYPARTE # 2EV-01087 - RESISTENCIAS PARA POSTFORMADORAS

PARTE # EV-6100 - POSTFORMADORA CONTINUA 2 LADOS - EVANS 6100220 Volt, 3 Ph., 60 Hz., or 380 Volt, 3 Ph., 50 Hz.17 kw (no air required) Standard work height 37”.Standard Features:90 and 180 degree setupQuick-change 90 and 180 degree roller assembles each side.Maximum material width 48"Heaters: Infrared radiant panel (instant on / off)Foot print: 107”L X 72”W X 44”H, Work height 37”Maximum Feed rate 10 feet per minute.Feed motor: ½ hp variable speed DC drive.Crated weight 2400 LBS. Shi...

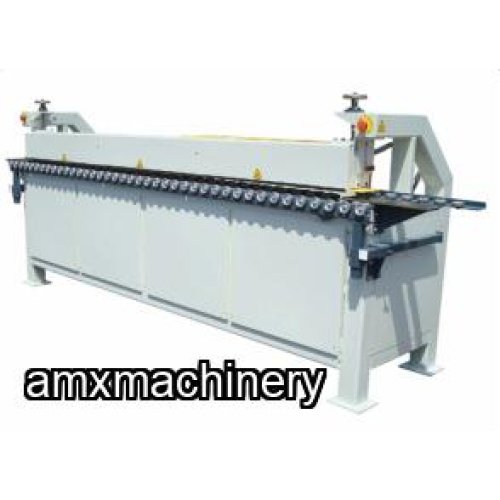

PARTE # 2EV-6000 - POSTFORMADORA CONTINUA 1 LADO - EVANS 6000220 Volt 1 phase, 220 volt 3 phaseStandard Features:Floating Laminate Trimmer (conventional router)Three phase machines require a separate 110 connection         Quick-change 90 and 180 degree roller assembles.Infrared radiant panel heater (instant on / off)Foot print: 130”L X 36”W X 50”HMaximum Feed rate 15 feet per minute.Feed motor: 1/3 hp variable speed DC drive.Crated dimensions 125 x 40 x 60Created weight 1750 LBS....

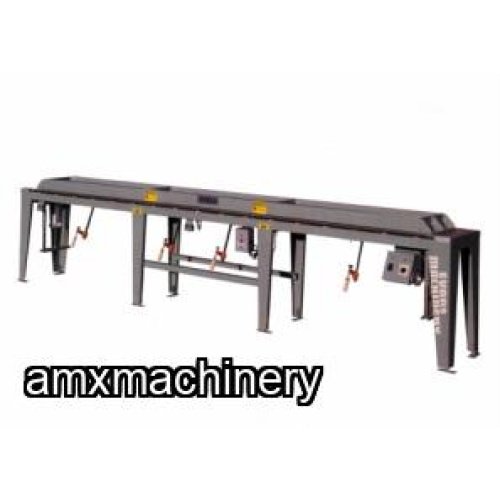

PARTE # 2EV-0190 - POSTFORMADORA - 12 PIES LARGO 1 LADO - EVANS 0190Para hacer dobles para Back Splash- 110V, 1 phase, 15 amps- 220V, 1 phase, 8 amps- Air: 80 PSI        - 12' maximum capacity (3660 mm)- Back Splash Height: Minimum 1" (25 mm), Maximum 34" (860 mm) - Possible coving radios: 1/8" (3 mm) , 3/16" (5 mm), 3/8" (10 mm)- Crated weight 1800 LBS. - Shipping dimensions 182” long X 34” wide X 50” high- Bends inside cove bends for back splashes. The 0190 is available with either...

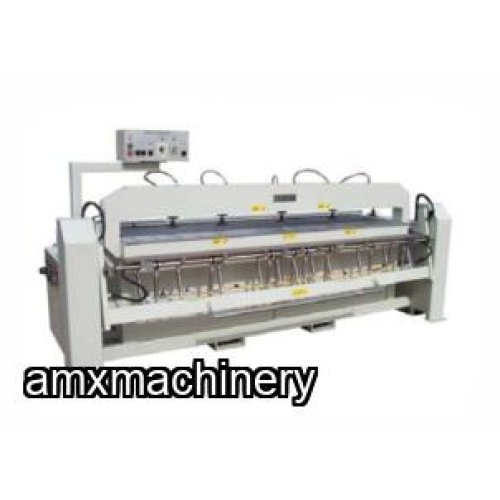

PARTE # 2EV-0138 - POSTFORMADORA - 8 PIES LARGO 1 LADO - EVANS 0138 All Form 8' capacity- 220 Volt, 1 Ph., 60 Hz, 20 amp. Or 380 Volt, 3 Ph. 50 Hz- 100 PSI air required 1 CFM (2 CFM if using vacuum clamp)- Standard Features:                 - Overhead clamp and vacuum system- Forming length capacity 100"- 1 ½” maximum forming radius. (3” thick material)- Foot print 4' wide X 11' long- Thermostatically controlled heater, ambient to 500 degrees Fahrenheit- Integrated timer. I...

PARTE: 2EV-0110 - POSTFORMADORA - 12 PIES LARGO 1 LADO - EVANS 0110Maximum Post Forming Length : 12’Overhead Radiant Heater and DeflectorsPush Button Pneumatic ControlsSteel frame with adjustable leveling feet.35" working height. Dimensions 175” long, 26” wide, 60” highAdjustable Leaf Spacing Between ½” and 1 ½”Electrical: 240 V, 1 PH, 60 HzAir Requirement: 100 PSICrated weight 1500 LBS. Shipping dimensions 182” long X 30” wide X 64” highOptions: ¼” cove rod system (requi...

PARTE # 2EV-9100 - MESA DE VACIO - EVANS 9100Para Trabajos en los Cantos13” diameter suction cup with replaceable ringPneumatic multi-stage hi-flow vacuum pump with debris filterSolid tower and 5/16” thick baseFoot pedal for vacuum controls and rotation lockOptions:- Vacuum Stand WITHOUT Rotating (option 9050)- Upgrade to include stability ring for larger materials (option 9101)- Upgrade to add adjustable height (option 9151)- Upgrade to a 15” cup The 9101 Vacuum Stand features a high pow...

PARTE # 2EV-6600 - CORE BUILDER - EVANS 6600Maquina para hacer el centro o la base de las cubiertas de cocinaThe Evans machinery model 6600 core builder produces a quality core every time. Within one pass, this machine bonds the build up to both sides of the panel using hot melt adhesive applies T-Mold for no drip edges and shapes your core to the required profile. The model 6600 Core Builder operates at a feed rate of 20 FPM as it travels on a non-skid straight line feed system. The model 6600 ...

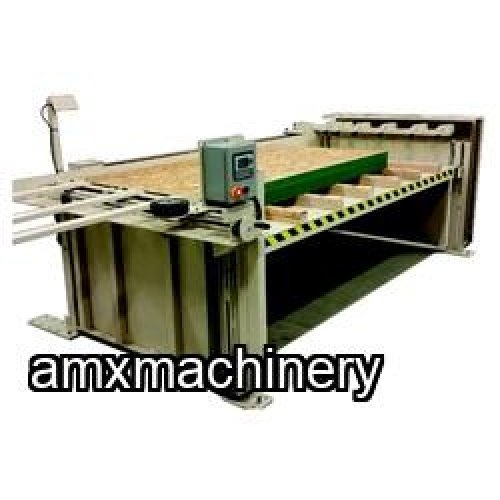

PARTE # 2EV-8100 – STANDARD PANEL FEEDER – EVANS 8100Hydraulic 4 Corner Cable LiftTouch Screen ControlsLaser Height SensorNEMA 12 Enclosure460 Volt Fused Disconnect5 HP Hydraulic Power PackPanel Size: up to 5’x10’Panel Thickness: 3/8” to 1-1/2”Lift Capacity: 7000 poundsElectrical: 230/460 V, 3 PH, 60 Hz, 480 volt, 3 phase, 60 hzOptions:- Upgrade for 5’ x 10’ or 5’ x 12’ materials and increase lift capacity to 8000 pounds. (option 8200)- Upgrade for remote hand pendant control...

PARTE # 2EV-0207 – PINCH ROLLER 62” - RODILLOS SEGMENTADOS – EVANS 020762" capacitySegmented bottom roller for countertop operationSafety Gates on In-Feed and Out-FeedSolid Top RollerSplit Bottom RollerFeed Rate: 50 FPMMaximum Width: 62”Maximum Thickness: 2”Work Height: 30-1/2”(Optional Riser Available)Drive Motor: ½ HPElectrical: 120 V, 1 PH, 60 HzAir Requirement: 100 PSIShipping dimensions 85” long X 33” wide X 57” high*Note: Options Listed under 0257 Pinch RollerOptions:- ...

PARTE # EV-0257 – PICH ROLLER 62” - RODILLOS PLANOS - EVANS 0257Pinch Roller 62" capacitySolid top and bottom rollers for flat panel laminatingSafety Gates on In-Feed and Out-FeedSolid Top and Bottom RollersFeed Rate: 50’ FPMMaximum Width: 62”Maximum Thickness: 2”Work Height: 30-1/2”(Optional Riser Available)Drive Motor: ½ HPElectrical: 120 V, 1 PH, 60 Hz (Options Available)Air Requirement: 100 PSICrated weight 790 LBS. Shipping dimensions 85” long X 33” wide X 57” highOption...
