CORTADORA - 52 PIESSquaring Shears offer precision shearing and rugged construction at an affordable price. The shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron steel. The shear bed is CNC machined then surface ground to precision tolerances to ensure an accurate working surface. The shear feature tri-action, high carbon/high chromium steel blades. Both upper and lower blades have a 2-degree edge relief and the lower has an additional 1-degree face rel...

ROLADORA DE METALIs a heavy-duty, affordable, production tool for forming curved parts and tubes in 16-gauge and lighter sheet metal. The roll has three gear-driven rolls that ensure even starting and feeding of materials. The gearing features a 4:1 reduction ratio for ease of operation of heavy materials. All gears are fully enclosed for safety and protection from the elements. The roll drive is controlled by a toggle-action, shrouded foot switch for instant forward and reverse action. The driv...

PARTE: 12377 - BRIQUETEADORA PARA METAL - HORIZONTAL - HYDRAULICA - 30 HP USADA - BUENAS CONDICIONES30 HP Motor10lb Average Bale (Aluminum)30lb Average Bale (Steel Chips)38lb Average Bale (Copper)36 Second Cycle Time (100/hr) -Excl. – HopperVickers Hydraulic Pump8” Bore (Main Cylinder)9” Bore (2nd Compression)4” Bore (Cover)Approximate Dimensions: 105” W x 60” H x 186” L (Machine Only) Approximate Weight: 18,000 lbs.

PARTE: 12376 - BRIQUETEADORA PARA METAL - HORIZONTAL - HYDRAULICA - 40 TONS USADA - BUENAS CONDICIONES Specifications: CAPACITY .............................. 196 TONS BRIQUETTE SIZE ........................ 3.5" X 3.5" HOPPER FEED ........................... 6' X 6' (EST) MOTOR DRIVE ........................... 40 HP HYDRAULIC POWER UNIT .................. YES   PRODUCTION RATES: CAST IRON ............................. UP TO 2,000 LBS/HR ALUMINUM .......

PARTE: 11726 - AFILADORA DE CUCHILLAS - CUCHILAS DE 2 PIES HASTA 10 PIES DE LARGO 7 - AFILADORA DE CUCHILLAS MARCA IND. G.H. PARA AFILE DE CUCHILAS DE 2 HASTA 10 DE LARGO CON ANCHOS DE 1 1/4 A 12 PULGADAS Y GROSOR DE 1/8 A 15/16 ACCIONADAS CON MOTOR 1 HP Y MOTOREDUCTOR DE ½.

PARTE: 2TA-TG-225B  -  AFILADORA PARA SIERRA DE VAIVEN - BANDA RECTAFEATURESA Peripheral Equipment for Frame SawDesigned to Maximize Blade Service Life While Minimizing Blade Consumption.The wet grinding feature assures extremely fine finish on teeth surfaces and greatly extends cutting period of saw blade.Very precise grinding module.Exact guiding of saw blades guarantees a minimum satellite loss.Grinding amount adjustment is accurately indicated by dial gauges.Variable grinding speed is con...

PARTE: 2CK-JF330 - AFILADORA DE CUCHILLAS PARA MOLDURADORAWas designed to ensure the operator can produce an optimum knife finish, while producing precisely accurate profiles.  The powerful 3HP grinding motor makes knife grinding a breeze.  The VFD allows the operator to dial in the optimum grinding speed no matter what type of knife steel they are grinding.  Using an axial constant setup, tools can be transferred to the moulder quickly for precise and fast changeovers.  The cutterhead is m...

PARTE: 2CK-SG-65 - AFILADORA PARA SIERRAS DE VAIVENEquiped with high-accuracy double shafts servo control, extending the life of the saw blade and reducing errors substantially. Spindle Power 2 HP Cooling Motor 1/6 HP X axis servo motor X axis 100W Y axis servo motor Y axis 400W Controller Mitsubishi Machine size 67" x 55" x 65" (L14...

BRIQUETEADORAS DE METAL - HYDRAULICAS NUEVAS CON GARANTIALas briqueteadoras de metal pueden compactar diferentes clases de materiales como hierro fundido, aluminio, cobre, magnesio, titanio, molibdeno, metal, etc., en bloques de alta densidad sin aditivos.Para mas información llámenos,Especificaciones: Modelo  unidad 3CH-83A-160  3CH-Y83-160  3CH-Y83-230  3CH-Y83-300  3CH-Y83A-300  3CH-Y83-800...

PARTE: 1DO-G618 - GUILLOTINA DE PEDAL - 6 PIES PARA CAL. 18 - EN LAMINA NEGRA NUEVA CON GARANTIALongitud de corte: 6´ (1.83m)Capacidad de corte: Cal.18 (Lamina negra)Placa de cortina: 5/8"Dimensiones de la máquina: 1960 x 840 x 1120mmPeso aproximado: 590 kgFabricada con materiales de primera calidadHerramienta ideal para hacer cortes en lámina de aceroConstruida en solida placa de acero resistente de trabajo pesado El cuerpo superior de la guillotina ...

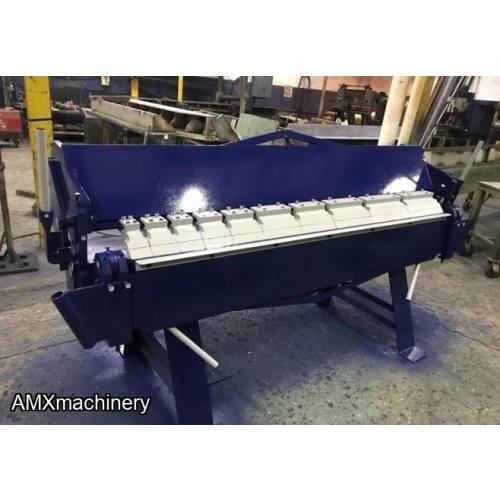

PARTE: 1DO-DU-814 - DOBLADORA UNIVERSAL - 8 PIES PARA CAL. 16 - EN ACERO INOXIDABLENUEVA CON GARANTIA REFORZADA Longitud de Dobles: 8´ (2.44m) Capacidad de Dobles: máxima Calibre 16 acero inoxidable Apertura de garganta: 3" Angulo de cortina: 45° Dados intercambiables (2)12", 10", 8", 6", 5", 4", 3" Dimensiones de la máquina 2985 x 840 x 1240mm Peso aproximado: 950 Kg Fabricada con materiales de primera calidad Herramienta ideal para hacer dobleces en lámi...

PARTE: 1DO-DU-614 - DOBLADORA UNIVERSAL - 6 PIES PARA CAL. 16 - EN ACERO INOXIDABLENUEVA CON GARANTIA REFORZADA Longitud de Dobles: 6´ (1.80m) Capacidad de Dobles: máxima Calibre 16 acero inoxidable Apertura de garganta: 4" Angulo de cortina: 45° Dados intercambiables (2)12", 10", 8", (3)6", 5", 4", 3" Dimensiones de la máquina 2375 x 840 x 1240mm Peso aproximado: 785 Kg Fabricada con materiales de primera calidad Herramienta ideal para hacer dobleces en l...

PARTE: 12326 - PUNZONADORA - HIDRAULICA - 100 TONS USADA - BUENAS CONDICIONES Brand:Hannifin Size:Length: 74 in. Width: 48 in. Height: 124 in. Condition:Used Mfg: United States Weight (lbs, oz):14000

PARTE: 12325 - PUNZONADORA - HIDRAULICA - 40 TONS USADA - BUENAS CONDICIONES Brand: Greenerd Size: Length: 70 in. Width: 44 in. Height: 96 in. Country of Manufacture: N/A Weight (lbs, oz): 5934, Tested and runs PLC Lost its program Safety's were bypassed to test machine Open height is 18-5/8" Closed height is 6" 230/460V 3 Phase Table Size 36"x16"

PARTE: 12323 - PUNZONADORA - 120 TON USADA - BUENAS CONDICIONES Model: 12-A-OBI-BG Air clutch & brake Back geared type Stroke:                  8" Slide adjustment:        4" Shut height S.D.A.U.:    15-1/2" to top of bed Area of bed:             40" L-R x 30" F-B Bolster thickness:       4" Area of slide:           19" L-R x 13" F-B Shank hole diameter:     2-1/2" Throat depth:        ...

PARTE: 12322 - PUNZONADORA - 30 TONS USADA - BUENAS CONDICIONES Tonnage capacity:                 30 tons Maximum material thickness:       1/4" mild steel Punching capacity:                1" dia. - 1/4" mild steel                                   3-1/2" dia. - 12 ga. mild steel Sheet size:                       18" x 30" Throat depth:                   ...

PARTE: 12321 - DOBLADORA DE CORTINA - 6'6" x 10 GA USADA - BUENAS CONDICIONESModel no. QHD-6020Bending capacity:            6'6" x 10 ga. mild steelTonnage capacity:            70 tonsOverall length of bed & ram: 80"Distance between housings:   61"Stroke:                      6.3"Open height:                 12.2"Throat depth:                13"Width of bed:                4.9"Speeds approx....

PARTE: 12320 - DOBLADORA DE CORTINA - 50-20 x 79" USADA - BUENAS CONDICIONES Marca:    Di-Acro Modelo:  Promecam 50-20 x 79" Largo de cama: 79"
