Identificador: 2392
Abierta
.PNG)
Descripción

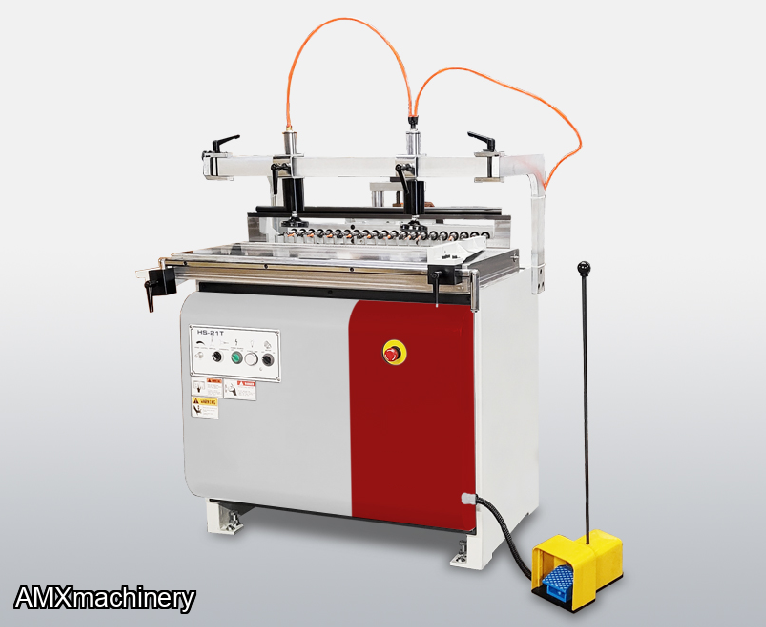

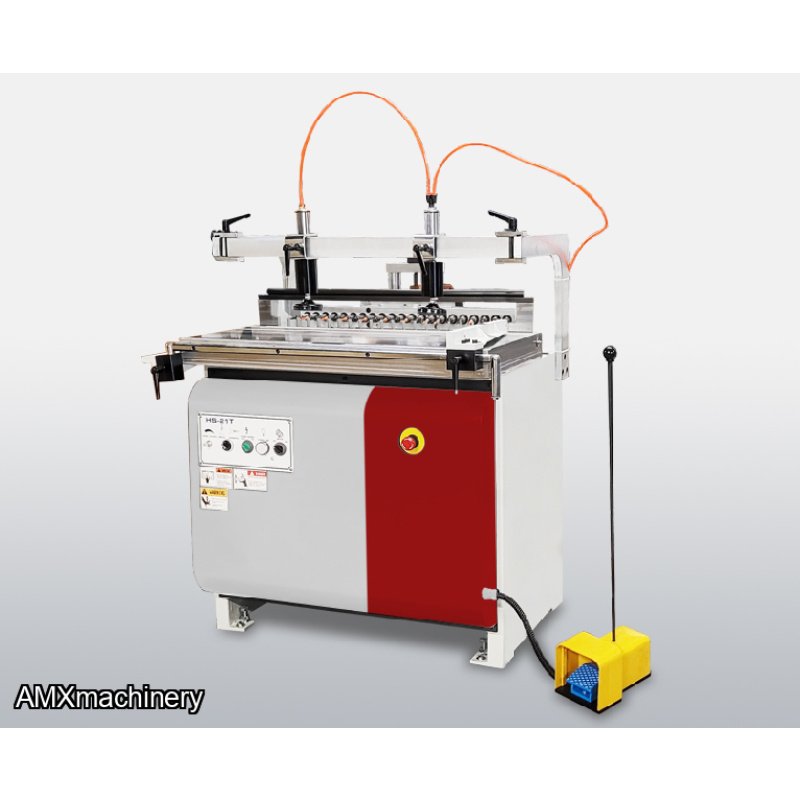

TALADRO MULTIPLE 21-HUSOS PARA CONSTRUCCION 2CK-HS21T
- Single line boring machine with 21 spindles (11 RH & 10 LH) at 32mm centers
- Tiltable boring unit can be changed from horizontal to vertical drilling by pneumatic setting
- Pneumatic drilling cycle by convenient foot pedal
- Quick 6-position boring depth selector for fast changeover
- 21 quick change chuck for fast changeover
- Boring unit can be tilted manually for angular drilling
- Adjustable drill feed speed
- Mechanical digital readouts are provided for precise setting of the boring head
- Two-fold away side fences for end boring or drilling smaller components
- Side fences provides convenient positioning of the workpiece using a linear scale for positioning
- 3-meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
Distance between center | 32mm |
Number of spindles | 21 |
Max. drilling depth | 3” (75mm) |
Boring head adjustment | 0°~90° |
Table size | 34.33” x 19.3″ (872 x 490mm) |
Spindle speed | 2800 RPM |
Motor | 2.5HP |
Electrics | 230/3/60= 9 Full Load Amps |
230/1/60 = 16.9 Full Load Amps | |
Machine weight | 770 lbs (350kgs) |
Shipping weight | 946 lbs (430kgs) |
Machine dimensions | 38.11”x32 ¼” x 48” (968x820x1220mm) |
Shipping dimensions | 45”x35”x54” (1143x889x1372mm) |
